Name: ZAi-H30T
Brand: HongKong Global Intelligence Technology Group Limited

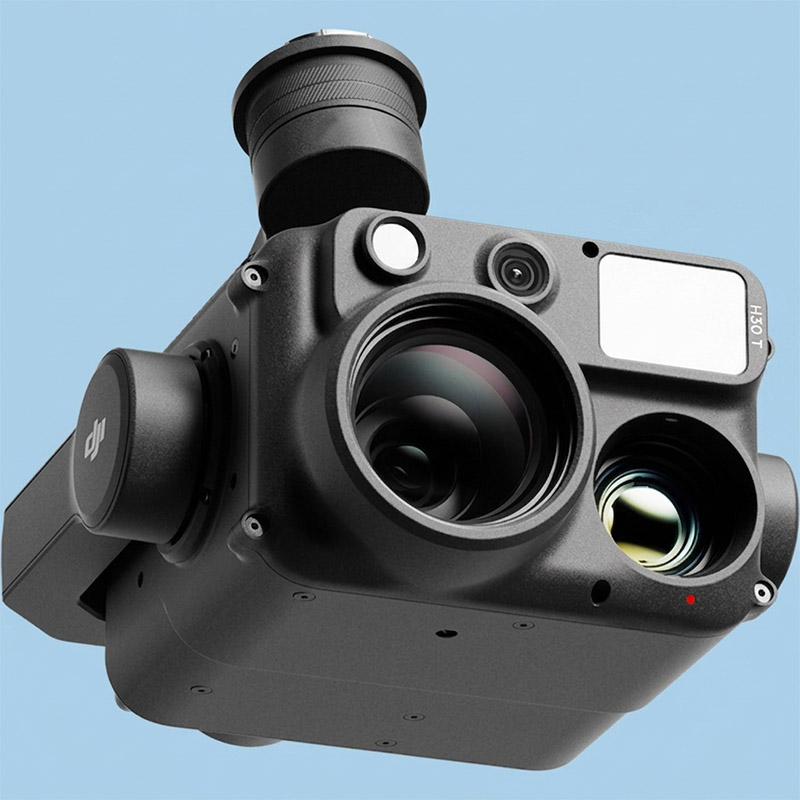

Key Highlights of ZAi-H30T Enterprise Payload

24/7 night vision with NIR light

Integrated 5-in-1 enterprise payload

400x maximum digital zoom

1280 x 1024 1024 high-resolution thermal imaging

3000-meter laser rangefinder turns

ZAi-H30T Enterprise Payload Specifications

1. General Specifications
1. General Specifications	Official Specification
Parameter	Official Specification
Product Name	Zenmuse H30T (ZAI-H30T)
Dimensions	170 × 145 × 165 mm (L×W×H)
Weight	920 ± 5 g
Power Consumption	28 W
IP Rating	IP54 (IEC60529 standard)
Supported Aircraft	Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus)
Gimbal Controllable Range	Tilt: -120° to +60°; Pan: ±320°

2. Infrared Thermal Camera
Parameter	Official Specification
Thermal Sensor	Uncooled VOx Microbolometer
Thermal Resolution	1280 × 1024 @ 30fps
Lens Specs	Focal Length 24 mm (52 mm equivalent), f/0.95, DFOV 45.2°
Digital Zoom	Up to 32x equivalent
Temperature Range	High Gain: -20°C to 150°C; Low Gain: 0°C to 600°C (up to 1600°C with Infrared Density Filter)
Photo / Video Format	Photo: R-JPEG (16-bit); Video: MP4 (H.264/H.265)
Thermal Sensitivity (NETD)	≤ 50 mk @ f/1.0

3. Zoom Camera
Parameter	Official Specification
Image Sensor	1/1.8-inch CMOS, 40 MP effective pixels
Focal Length	7.1-172 mm (33.4-809.3 mm equivalent)
Max Aperture	f/1.6 - f/5.2
Optical Zoom	34x Hybrid Optical Zoom
Max Zoom	400x Max Digital Zoom
Max Video Resolution	Single shot: 3840 × 2160 @ 30fps; Night Scene: 1920 × 1080
ISO Range	Normal: 100 - 25600; Night Scene Mode: 100 - 819200

4. Wide-Angle Camera & Laser Range Finder (LRF)
Parameter	Official Specification
Wide Sensor	1/1.3-inch CMOS, 48 MP effective pixels
Wide Lens	Focal Length 6.72 mm (24 mm equivalent), f/1.7, DFOV 82.1°
Laser Wavelength	905 nm
LRF Measurement Range	3 m to 3000 m
NIR Auxiliary Light	850 nm wavelength, Class 1 safety rating

Technical Consultation & Project Requirements

Share your mission specifications—such as payload capacity, endurance needs, or environmental constraints. Our engineering team will review your data and provide a optimized UAV configuration tailored to your industrial workflow.
