Name: ZAi-P15
Brand: HongKong Global Intelligence Technology Group Limited



+86-18818709844



aric@industrial-gradedrone.com





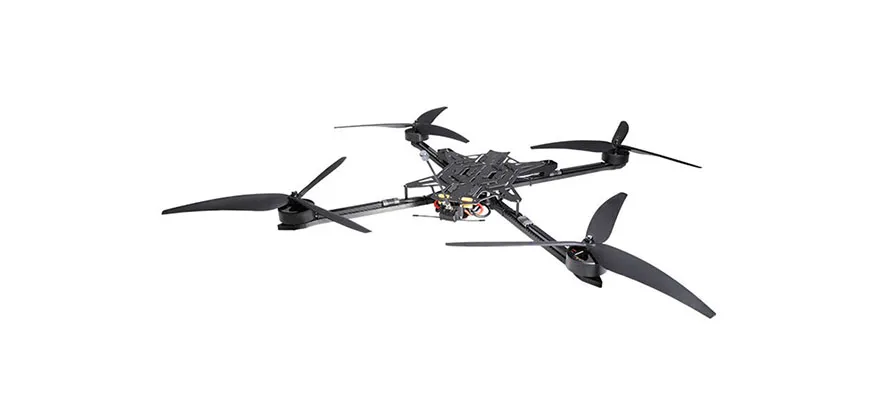

Key Highlights of ZAi-P15 Drones

High-payload 7.5kg capability

Ultra-sturdy 10mm carbon arms

High-power 5.8G video transmission

Responsive F722 FC with 80A ESC

Long-range ELRS dual-frequency link

Robust 8S battery power system

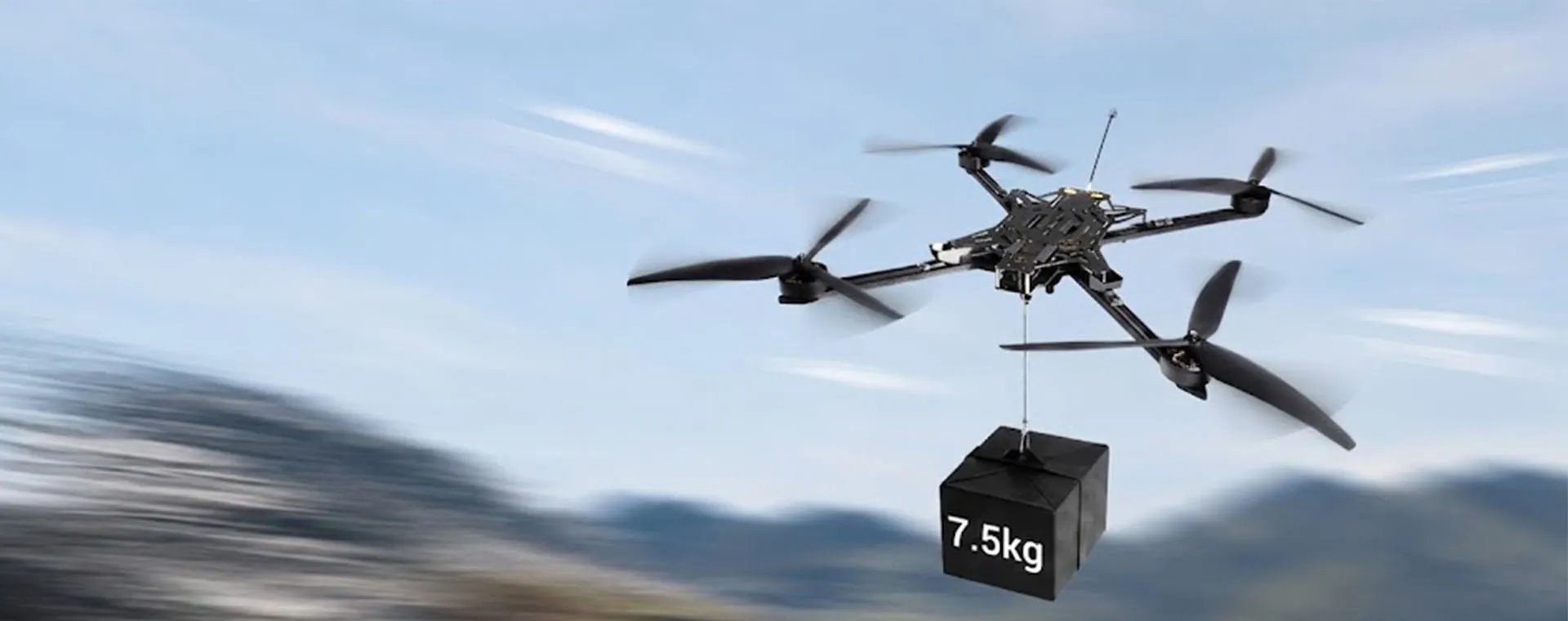

15-inch High-Stability Heavy-Lift Industrial FPV Platform

The ZAi-P15 is a high-performance 15-inch FPV platform engineered for heavy-payload missions. Powered by an 8S system, robust 10mm carbon arms, and advanced F722 flight control, it delivers exceptional flight stability, high-speed responsiveness, and reliable long-range transmission for demanding industrial and aerial applications.

Key Benefits of ZAi-P15 Pro FPV Drones

Superior Payload Capacity

Engineered with an 8S power system to effortlessly lift up to 7.5kg payloads while maintaining flight stability.

Ultra-Rugged Construction

Built with premium T300 carbon fiber and 10mm thick arms for exceptional structural rigidity and long-term durability.

Responsive Flight Control

Equipped with a high-performance F722 flight controller and 80A ESC for precise, agile, and reliable maneuvering.

Long-Range Communication

Features a 3W high-power VTX and ELRS dual-frequency link for crisp, real-time video transmission over extended distances.

Specification of ZAi-P15 FPV Drones

Feature	Specification
Dimension	W 10.55" × L 9.17" × H 1.65" (W 268 x L 233 x H42 mm)
Fuselage Material	Carbon Fiber
Top Plate	2.5 mm Carbon Fiber
Base Plate	3.0 mm Carbon Fiber
Arm	5.0 mm Reinforced Carbon Fiber
Payload Capacity	1.5–3 kg
Flight Distance	5–10 km
Top Speed	140 km/h
Weight (No Battery)	505 g
Weight (w/ 5000 mAh Li-ion)	1103 g
Battery Life	30 min max
Flight Time (No Payload)	32 min
Flight Time (1.5 kg Payload)	11 min
Flight Time (3 kg Payload)	6 min
Camera	1200TVL HD Lens
Lens Control	Angle Adjustable
Battery	6S 22.2V Li-ion Standard 5000 mAh
Lens	1200 TVL SENSER: 1/2.7 inch DC5V
Motor	#2807 KV: 1305 BLDCM
FC	F435 / F722 Parameter Adjustment with BF
ESC	4IN1 32Bit 55A ESC
Propellor	7040 Three-bladed 7-ich
VTX	1.6W / 2.5W / 3W 5.8G / 1.3G (Optional)
Receiver	ELRS 2.4G / 915M
Operating Temperature	-20℃ - 70℃

Technical Consultation & Project Requirements

Share your mission specifications—such as payload capacity, endurance needs, or environmental constraints. Our engineering team will review your data and provide a optimized UAV configuration tailored to your industrial workflow.
