Name: ZAi-P10
Brand: HongKong Global Intelligence Technology Group Limited



+86-18818709844



aric@industrial-gradedrone.com





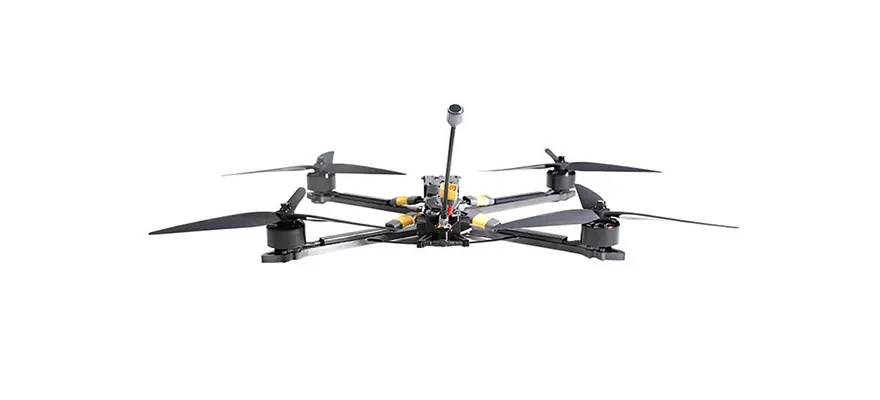

Key Highlights of ZAi-P10 FPV Drones

10-inch Long-Range Carbon Fiber Frame

4KG Max Payload Capacity

160 KM/H High-Speed Performance

Up to 30 Min Endurance (8000mAh 6S)

High-Power 5.8G 3W VTX & ELRS Link

1500TVL Low-Latency FPV Camera

Powerful 3115 900KV Motors & 60A Stack

Heavy-Load 10-inch Industrial FPV Drone with High Speed

Engineered with a 7mm T300 carbon fiber frame, the ZAi-P10 is a 10-inch industrial FPV drone built for heavy-payload missions. Driven by 3115 900KV motors, an F405+60A stack, and a 5.8G 3W VTX with ELRS, it carries up to 4kg at 160 km/h with 30-minute max endurance.

Key Benefits of ZAi-P10 FPV Drones

Industrial Grade Build

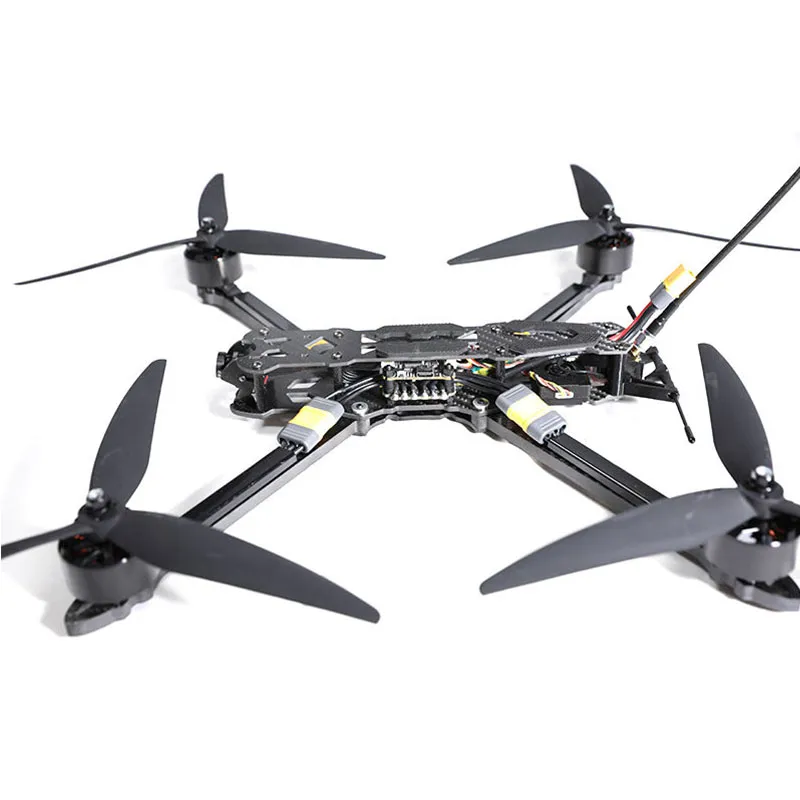

T300 carbon fiber frame with 7mm rigid arms ensures maximum durability under demanding flight conditions and heavy operations.

High Payload Capability

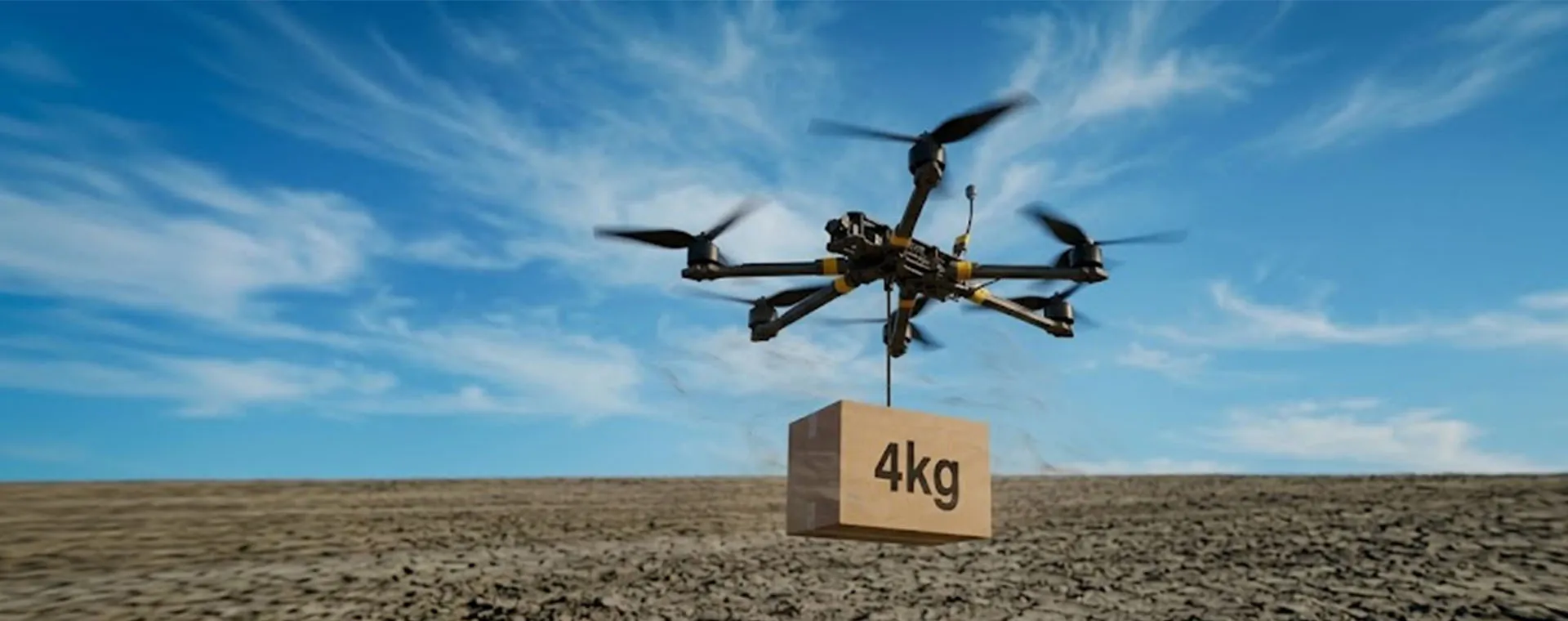

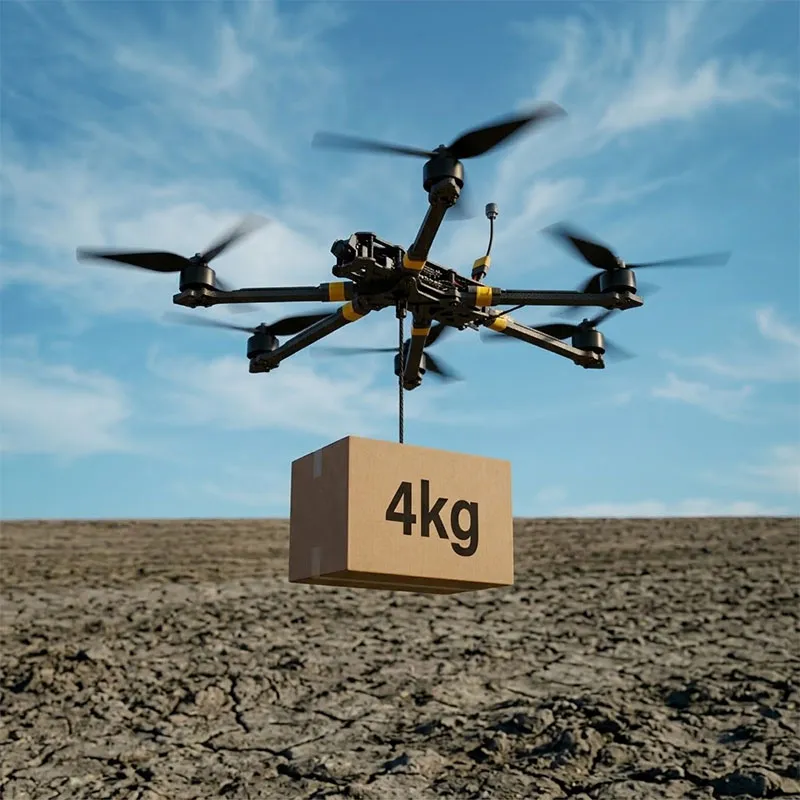

Effortlessly handles up to 4kg max payload, making it ideal for specialized industrial and commercial delivery missions.

High-Speed Performance

Reaches blistering top speeds of 160 km/h with responsive, agile handling for fast-paced operational deployments.

Extended Flight Time

Offers up to 30 minutes of endurance unloaded and 8–15 minutes under full load with recommended 8000mAh 6S batteries.

Long-Range Control & Video

Equipped with a 5.8G 3W high-power VTX and ELRS receiver for ultra-low latency, reliable long-range pilot feedback.

Specification of ZAi-P10 FPV Drones

Parameter / Specification	Value / Description
Model	10 inch
Empty Weight	3 KG
Max Payload	4 KG
Flying Time (With Load)	8 – 15 min
Flying Time (No Load)	15 – 30 min
Max Speed	160 KM/H
Frame	T300 carbon fiber, wheelbase: 440mm; arm thickness: 7mm
Motor	3115 900KV
Stack	F405 + 60A
VTX	5.8G 3W
Receiver	ELRS 915MHZ / 2.4G
Camera	1500TVL
Prop	HQ 1050
Antenna	5.8G RHCP 150MM
Interface	XT60
Recommended Battery	8000MAH 6S

Technical Consultation & Project Requirements

Share your mission specifications—such as payload capacity, endurance needs, or environmental constraints. Our engineering team will review your data and provide a optimized UAV configuration tailored to your industrial workflow.
