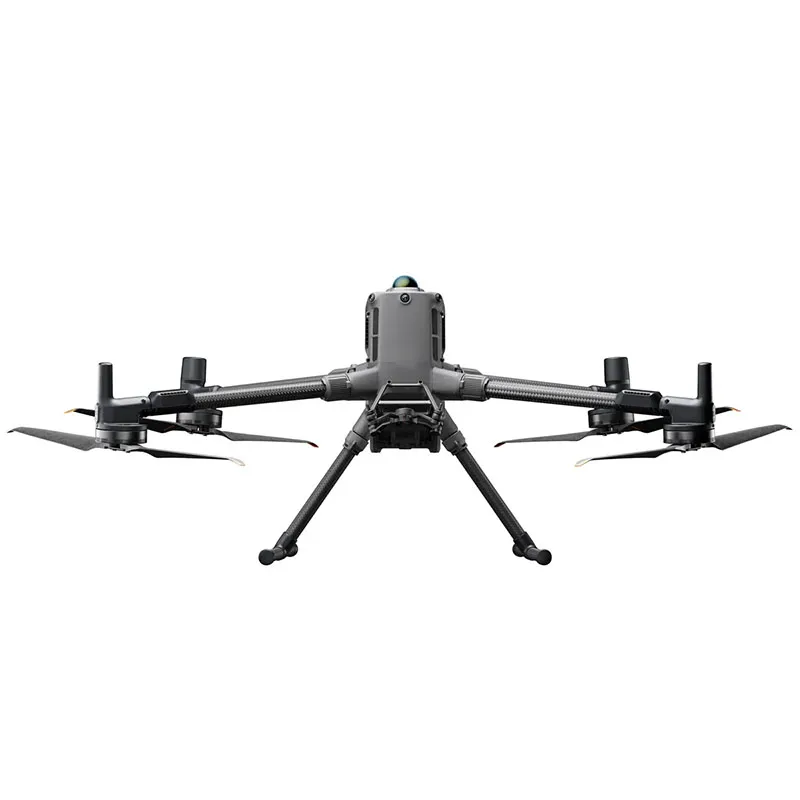

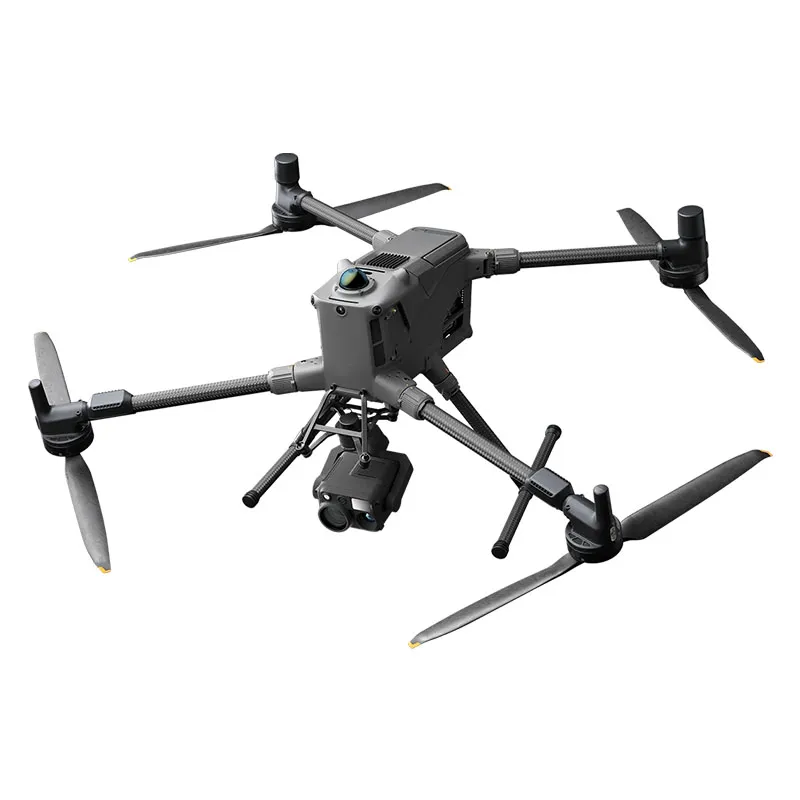

Name: ZAi-M400_copy20260910102519
Brand: HongKong Global Intelligence Technology Group Limited



+86-18818709844



aric@industrial-gradedrone.com





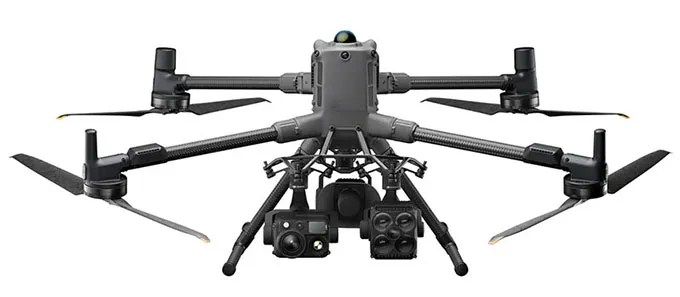

Key Highlights of ZAi-M400 Public Safety Drone_copy20260910102519

6 Kg Max Payload Supporting Up to 7 Simultaneous Sensors_copy20260910102519

59-Minute Flight Time with High-Capacity TB100 Batteries_copy20260910102519

Breakthrough 360° Rotating LiDAR for High-Speed Wire Avoidance Even in Total Darkness_copy20260910102519

O4 Enterprise Enhanced Transmission with a 40 Km Range and 4G Relay Support_copy20260910102519

IP55-Rated All-Weather Durability_copy20260910102519

Native Tethered Power Compatibility for Persistent Operations_copy20260910102519

Inspect, Map, and Master any Terrain with ZAi-M400_copy20260910102519

ZAi-M400 isn't just another drone; it's a dedicated workhorse for the field. Built to handle unpredictable environments, it pairs a rugged airframe with high-fidelity imaging that actually holds up under scrutiny. From tight inspections to massive site maps, the M400 gets the job done without the technical friction.

Key Benefits of ZAi-M400 Enterprise Drone_copy20260910102519

Massive Payload Expansion_copy20260910102519

ZAi-M400 can carry up to 7 payloads with a total weight of 6kg, making it a true heavy-lift industrial workhorse.

LiDAR-Powered Safety_copy20260910102519

The inclusion of a dedicated rotating LiDAR allows the drone to "see" thin wires and obstacles even in pitch-black conditions or complex environments where traditional vision sensors fail.

BVLOS Ready_copy20260910102519

With the O4 Enterprise Enhanced system and 4G/LTE relay support, it is specifically designed for Beyond Visual Line of Sight (BVLOS) operations.

Specification of ZAi-M400 Public Safety Drone

Parameter	Specification
Max Flight Time	Up to 59 minutes (no wind, with H30T)
Max Horizontal Speed	25 m/s (approx. 90 km/h)
Max Wind Resistance	12 m/s
Max Takeoff Altitude	7,000 m
Max Takeoff Weight	15.8 kg
Max Payload Capacity	6 kg (Supports up to 7 simultaneous payloads)
Weight (with batteries)	Approx. 9.74 kg
Obstacle Avoidance	360° Rotating LiDAR + mmWave Radar + Vision
Obstacle Detection	Detects thin power lines (21.6mm) at up to 25 m/s
FPV Camera	Starlight-grade Night Vision (1080p/30fps)
Video Transmission	O4 Enterprise Enhanced
Max Transmission Range	40 km (FCC); 20 km (SRRC/CE/MIC)
Relay Support	Support for DJI Transmission Relay
Battery Model	TB100 Intelligent Flight Battery (977 Wh)
Charging System	Supports hot-swapping; 400-cycle lifespan
IP Rating	IP55 (Dust and Water resistant)
Operating Temp	-20℃ to 50℃ (-4℃ to 122℃)
External Ports	4x E-Port V2; Supports PSDK, MSDK, and Cloud API

Technical Consultation & Project Requirements

Share your mission specifications—such as payload capacity, endurance needs, or environmental constraints. Our engineering team will review your data and provide a optimized UAV configuration tailored to your industrial workflow.
