Name: ZAi-FCK9
Brand: HongKong Global Intelligence Technology Group Limited



+86-18818709844



aric@industrial-gradedrone.com





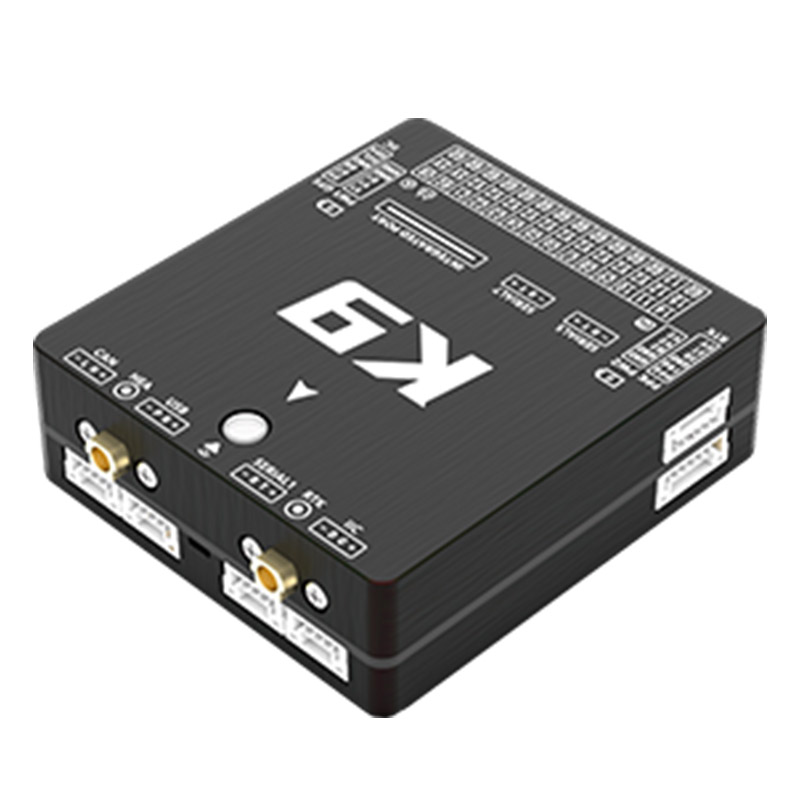

Key Highlights of ZAi‑FCK9 Autonomous Flight Controller

Delivers Stable and Highly Precise Flight Control for Professional UAV Operations

Supports Intelligent Mission Planning and Real-time Flight Management

Provides Reliable Low-latency Communication for Responsive Command and Control

Ensures Dependable Performance in Complex and Mission-critical Environments

Offers Flexible Customization to Meet Diverse Industry Application Requirements

Enables Seamless Integration with a Wide Range of UAV Platforms and Payloads

Empower Your UAV Operations with Advanced Flight Control Solutions

ZAi-FCK9 autopilot is an advanced UAV flight control system designed to deliver stable, precise, and reliable flight performance. With intelligent navigation, multi-interface connectivity, and flexible integration capabilities, it enables seamless operation across various UAV platforms and supports demanding applications such as industrial inspection, mapping, public safety, emergency response, and defense missions.

Key Benefits of ZAi-FCK9 Multirotor Autopilot

Mission-Critical Performance

Delivers dependable operation for long-duration flights and professional UAV applications.

High-Performance Flight Control

Provides accurate attitude control and stable flight performance for demanding multirotor UAV missions.

Superior Flight Stability

Maintains smooth and reliable operations even in complex environments and challenging flight conditions.

Advanced Navigation System

Enables precise positioning, autonomous flight capabilities, and enhanced mission execution efficiency.

Flexible Platform Integration

Supports diverse UAV architectures, payload systems, and customized industrial applications.

Reliable Data Communication

Ensures fast, stable, and low-latency connectivity between onboard systems and ground operators.

Specification of ZAi-FCK9 Autonomous Multirotor Flight Controller

Parameter	Specification / Details
Model	ZAi-FCK9
Supported Airframes	Quadcopter, Hexacopter, Octocopter, Fixed-Wing, VTOL, Helicopter, Rover
Main Processor	High-performance 32-bit ARM Cortex-M7 (480 MHz)
Coprocessor	32-bit ARM Cortex-M4 co-processor
Onboard Storage	MicroSD (TF) card slot for high-rate flight logging
IMU	Triple-redundant IMU system (Industrial-grade Accelerometer & Gyroscope)
Barometer	High-precision digital barometer
Internal Dampening	Built-in hardware shock absorption system
PWM Channels	Up to 12 main PWM/Servo outputs
Serial / UART	5x UART ports (for Telemetry, GPS, OSD, Companion Computer, etc.)
CAN Bus	2x CAN interfaces (Supports DroneCAN / UAVCAN protocol)
RC Receiver Support	SBUS, PPM, CRSF / ELRS, DSMX, IBUS
I2C Port	1x I2C port
USB Interface	Type-C USB
Operating Voltage	4.8V – 5.4V DC (Flight Controller Input)
Power Module Input	2S – 12S LiPo (via PMU module)
Power Consumption	< 3 W
Shell Material	CNC Aluminum Alloy Case
Dimensions	50 mm × 40 mm × 16 mm
Weight	~52 g
Operating Temperature	-20°C to +85°C

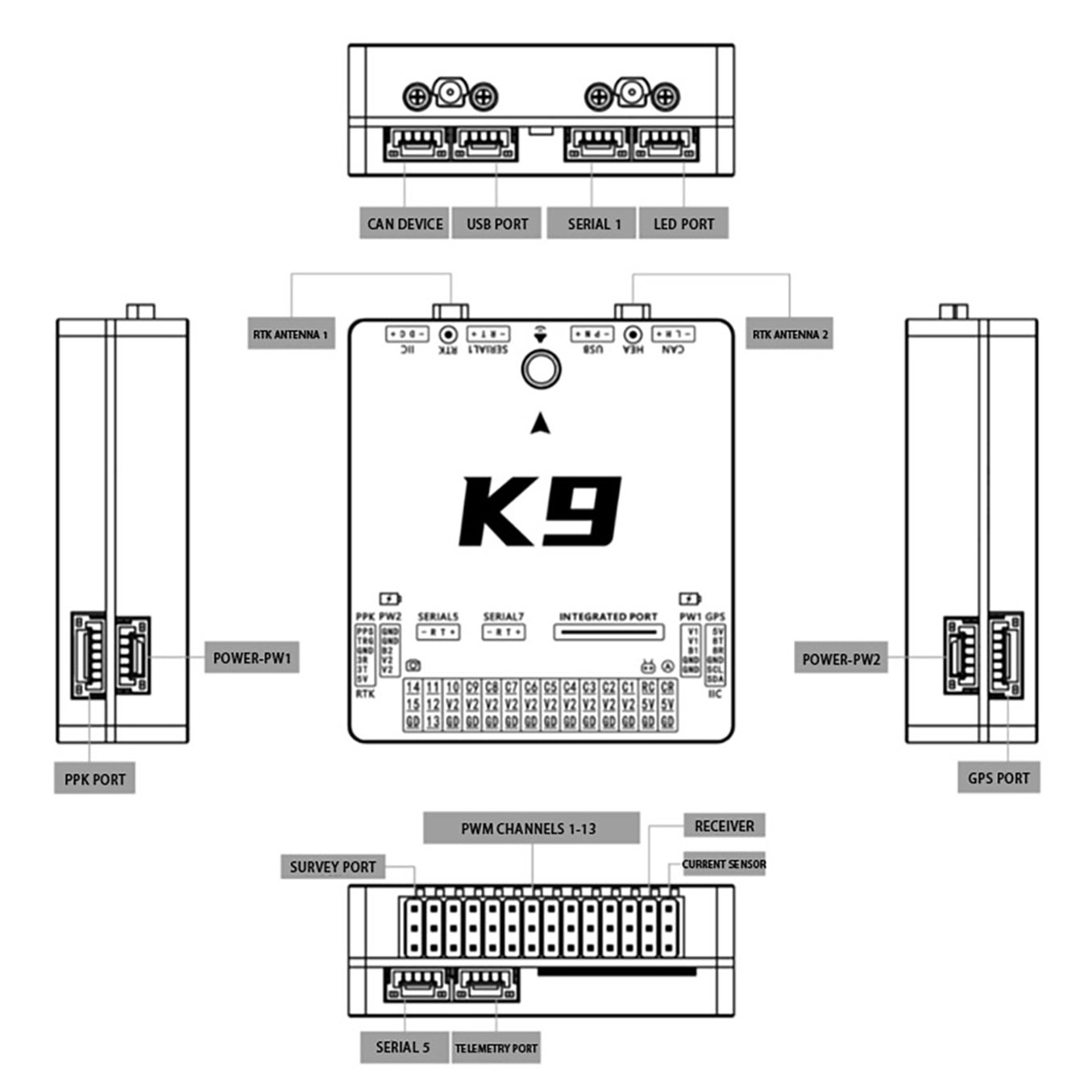

K9 flight controller.jpg

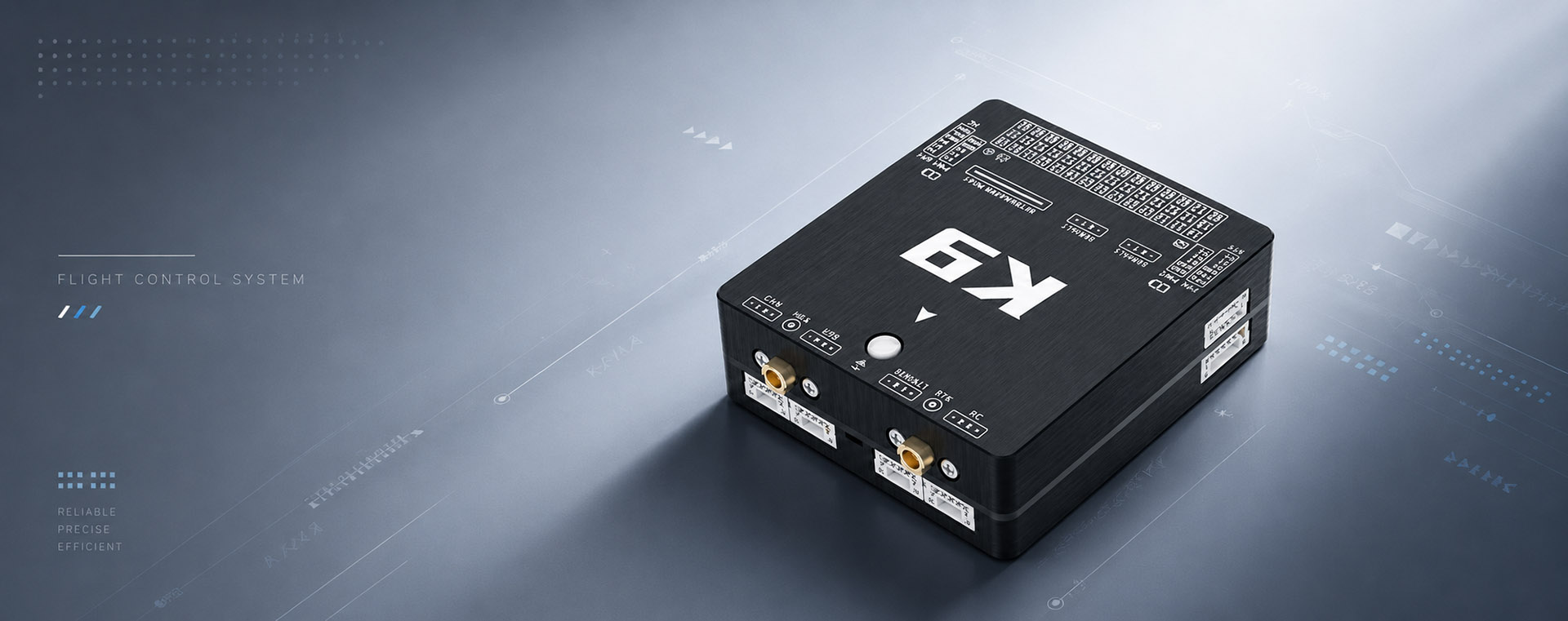

ZAi-FCK9 Multimotor Flight Controllers

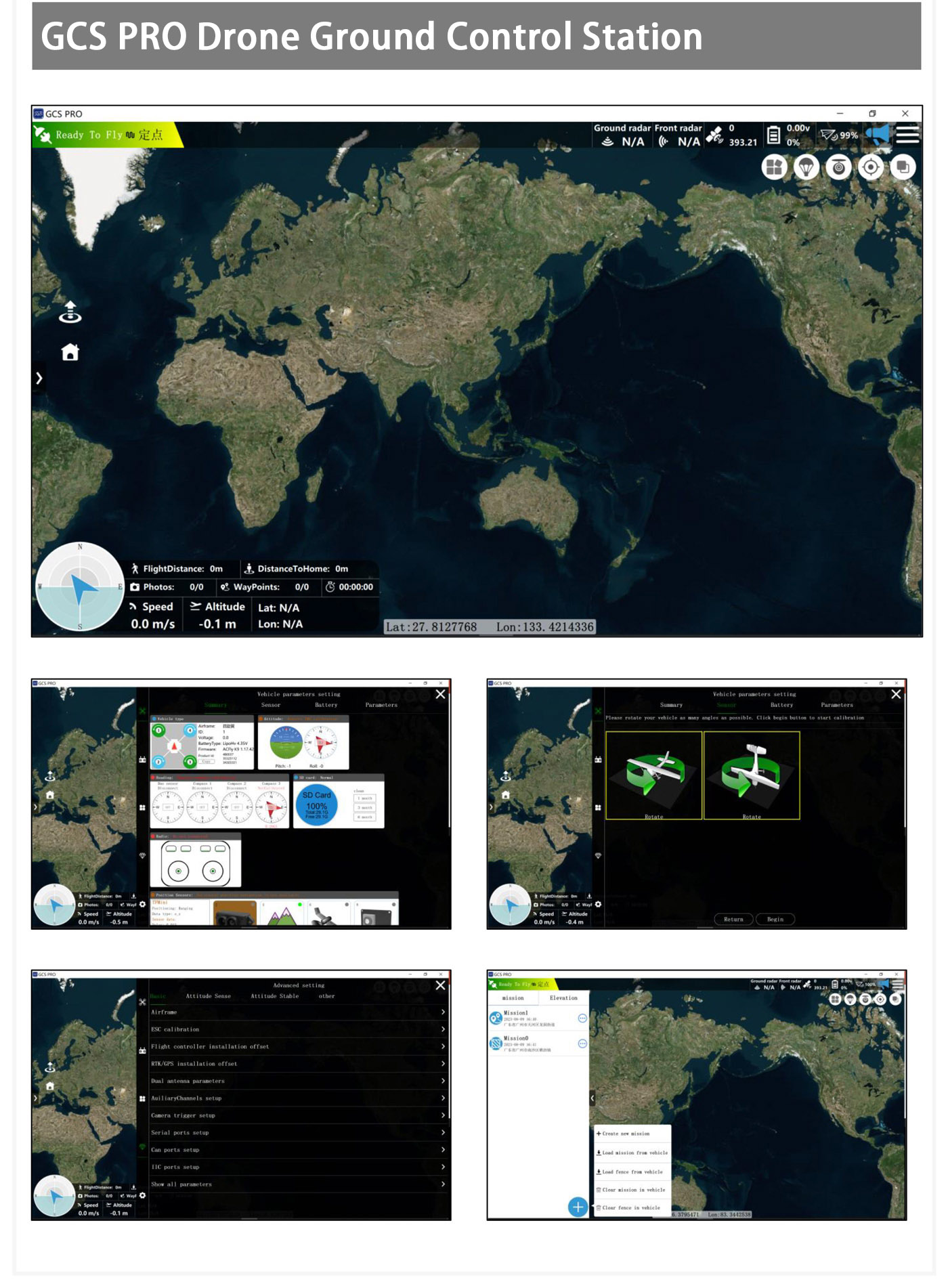

zai-fck9 gcs pro drone ground control station.jpg

Technical Consultation & Project Requirements

Share your mission specifications—such as payload capacity, endurance needs, or environmental constraints. Our engineering team will review your data and provide a optimized UAV configuration tailored to your industrial workflow.
