ZAi-T100 Agriculture Drones

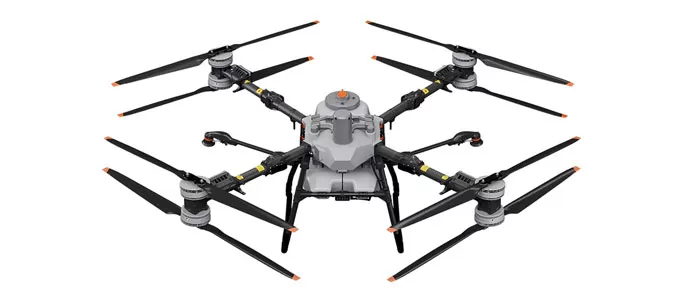

Key Highlights of ZAi-T100 Agriculture Drones

Key Highlights of ZAi-T100 Agriculture Drones
Multi-Role Platform: Spraying, Spreading, Lifting
High Payload with 175 Kg MTOW
100 L Spraying + 150 L Spreading Capacity
Fast, High-Efficiency Application Rates
Advanced Multi-Sensor Obstacle Avoidance
RTK-Level Precision And Stable Long-Range Control

Empower Modern Farming with ZAi-T100

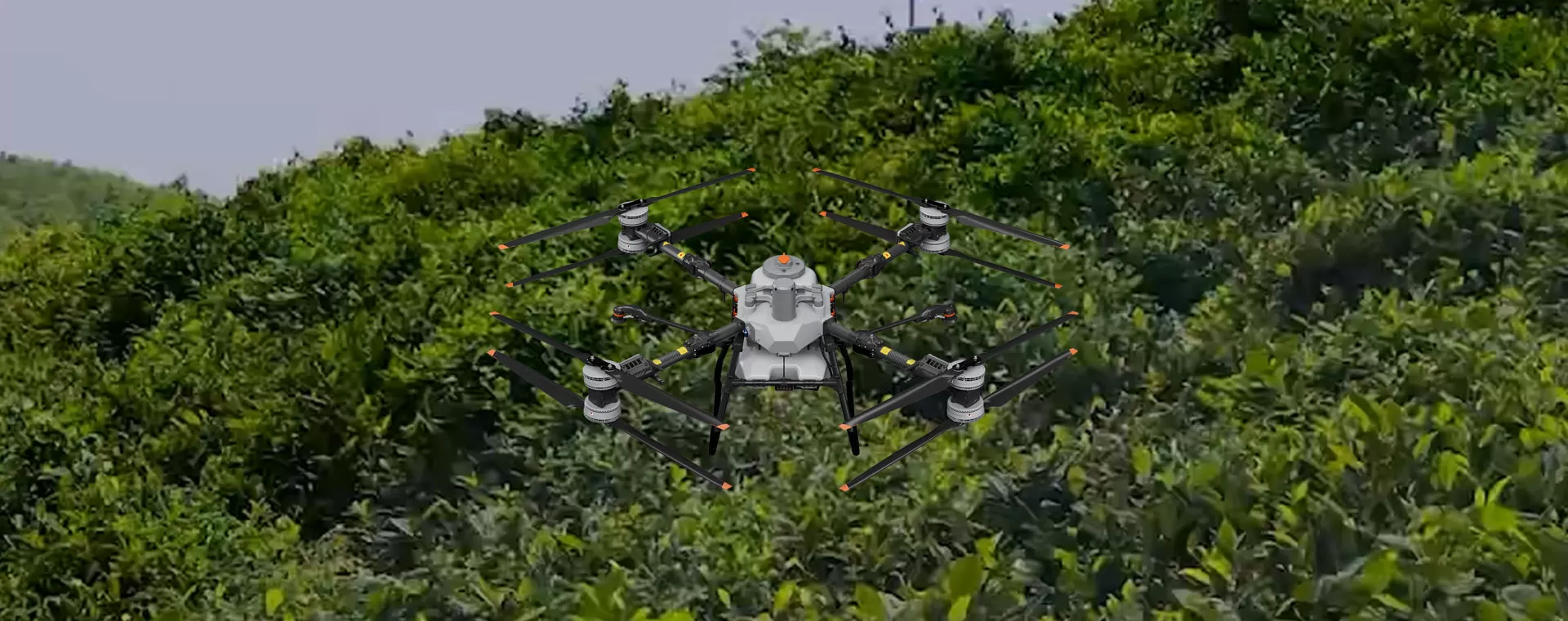

ZAi-T100 is a heavy-duty agricultural drone built for efficient large-scale field operations. Designed to handle spraying, spreading, and lifting in one platform, it combines high payload capacity, fast application rates, and precise RTK control, helping operators cover more ground with fewer interruptions and consistently reliable results.

zai t100 agricultural drone manufacturer
zai t100 agricultural drone wholesale
zai t100 agricultural drone manufacturers
zai t100 agricultural drone suppliers
zai t100 agricultural drone for sale

Key Benefits of ZAi-T100 Agriculture Drones

High-Capacity Multi-Task Platform
High-Capacity Multi-Task Platform

Supports spraying, spreading, and lifting with up to 175 kg takeoff weight, reducing equipment investment across diverse agricultural operations.

Efficient Large-Area Spraying
Efficient Large-Area Spraying

100 L tank with 30–40 L/min flow and 5–13 m swath width enables rapid coverage with fewer refills.

Heavy-Duty Spreading Performance
Heavy-Duty Spreading Performance

150 L tank and 400 kg/min flow rate handle dense fertilizers efficiently, improving field productivity during peak application windows.

Strong Aerial Lifting Capability
Strong Aerial Lifting Capability

Up to 100 kg lifting capacity expands use beyond agriculture, supporting transport and logistics in challenging terrains.

Advanced Obstacle Detection Suite
Advanced Obstacle Detection Suite

LiDAR, penta-vision, and millimeter-wave radar enable reliable 360° obstacle avoidance for safer low-altitude autonomous operations.

Precision Flight Control with RTK
Precision Flight Control with RTK

±10 cm positioning accuracy ensures consistent application, minimizing overlap and reducing input waste across large-scale fields.

Fast Operations with Stable Speed
Fast Operations with Stable Speed

Max speed of 20 m/s and optimized working speed up to 13.8 m/s balance efficiency and application accuracy in real conditions.

Long-Range, Reliable Communication
Long-Range, Reliable Communication

Up to 8 km signal range (FCC) maintains stable control over wide farmland without frequent repositioning.

Ultra-Fast Charging Turnaround
Ultra-Fast Charging Turnaround

DB2160 battery recharges from 30% to 95% in 8–9 minutes, keeping downtime minimal during continuous operations.

Specification of ZAi-T100 Agriculture Drones

Key ParametersTechnical Specifications
Max Takeoff WeightSpraying: 175 kg / Spreading: 175 kg / Lifting: 170 kg
Max Diagonal Wheelbase2330 mm
Dimensions3220 × 3224 × 975 mm (Arms & Propellers unfolded)
Spray Tank Volume100 L
Max Spray Rate30 L/min (2 sprinklers) / 40 L/min (4 sprinklers)
Effective Spray Width5 - 13 m
Spreading Tank Volume150 L
Max Flow Rate400 kg/min (Composite fertilizer)
Max Spreading Payload75 kg
Max Lifting Capacity100 kg (with single battery) / 85 kg (standard config)
Radar SystemLiDAR + Penta-Vision System + Millimeter-Wave Radar
Obstacle Sensing360° Omnidirectional Obstacle Avoidance
Max Flight Speed20 m/s (Operational speed: up to 13.8 m/s)
Hovering AccuracyRTK enabled: ±10 cm (Horizontal/Vertical)
Signal Range (FCC)Up to 8 km (Unobstructed, interference-free)
Battery ModelDB2160 Intelligent Flight Battery (41,000 mAh)
Charging Time8 - 9 minutes (30% to 95% with D14000iE generator)


Technical Consultation & Project Requirements

Share your mission specifications—such as payload capacity, endurance needs, or environmental constraints. Our engineering team will review your data and provide a optimized UAV configuration tailored to your industrial workflow.
