80 kg
80 kg
Large 70–75L Tank
Spraying, Spreading, and Delivery
Precise RTK Positioning (Horizontal ±10 cm, Vertical ±10 cm)

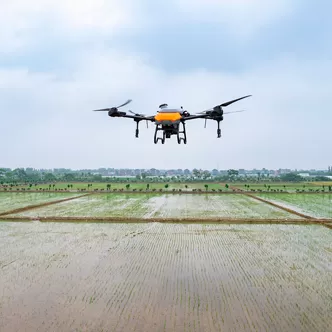

The ZAi-580 is a versatile agricultural drone designed for spraying, seeding, and lifting. Built with a robust propulsion system, it delivers over 80 kg of thrust and supports a maximum takeoff weight of 150 kg, enabling efficient, multi-task operations across demanding farming environments.

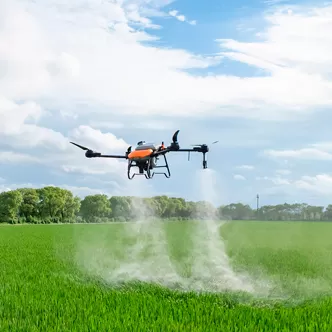

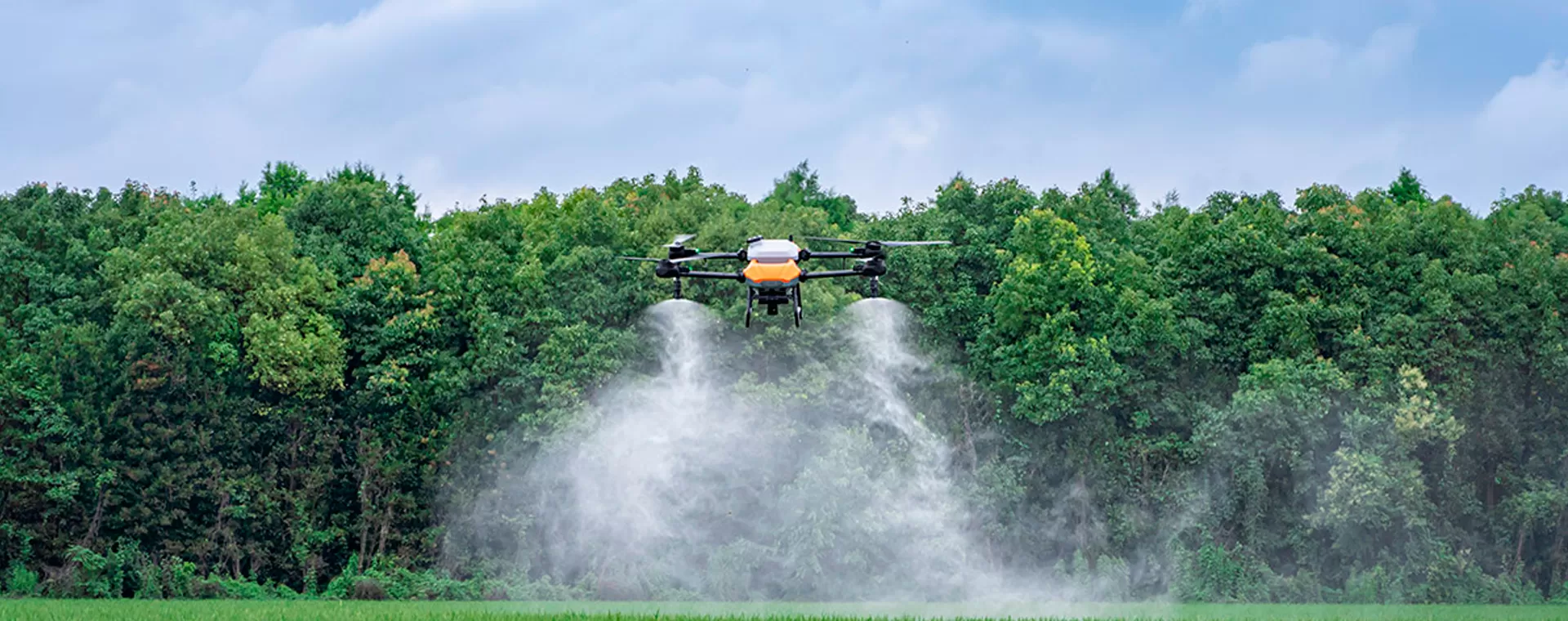

Field spraying tests of the ZAi-580 demonstrate stable flight, consistent droplet distribution, and precise coverage across varied terrain. The drone maintains strong performance under heavy loads, ensuring efficient application rates while minimizing drift and waste, making it highly reliable for large-scale agricultural spraying operations.
Handles up to 80 kg payload, supporting spraying, seeding, and lifting tasks in one platform for maximum field versatility.
Equipped with up to 70–75L spray capacity, enabling longer operation time and significantly reducing refill interruptions in large fields.
Designed for spraying, fertilizer spreading, seeding, and payload transport, covering multiple agricultural scenarios with a single drone system.
Supports autonomous route planning, RTK positioning, and obstacle avoidance for precise, consistent, and highly automated field operations.
Delivers large-scale coverage with improved efficiency, reducing manual labor while ensuring uniform application and consistent crop treatment.
Built for heavy-duty agricultural use, offering strong structure, reliable performance, and durability under continuous high-load operations.
| Model | ZAi-580 |
| Flight Specications | |
| Layout | 4-axis |
| Dimensions | 3305mm x 3577mm x 850mm (boom deployed, blades deployed), 1270mm x 880mm x 880mm (boom folded) |
| Maximum wheelbase | 2628mm |
| Maximum take-off weight | Spraying 140kg / Spreading 150kg |
| Empty mass (including battery) | 68kg |
| Tank capacity | 70L |
| Seed tank capacity | 100L (max. 80kg) |
| RTK Positioning | Horizontal ±10 cm, Vertical ±10 cm |
| Hovering time with no load | >15 min |
| Hovering time with full load | >5 min |
| Power System | |
| Motor KV value | 46(r/min)·V |
| Motor size | 140*34mm |
| Motor rated power | 4650w*4 |
| Rated speed | 2000r/min |
| Propeller blade diameter | 1575mm(62in) |
| Number of propeller Blade | 4 |
| Propeller blade Material | Carbon Fiber |
| Energy System-Smart Charger | |
| Output power | 9000W (generator direct connection) / 2000W (utility direct connection) |
| Weight | 17.6kg |
| Operating System - Spreading System | |
| Spreading tank volume | 100L |
| Maximum load | 80kg |
| Feeding method | Winches |
| Support particle diameter | 0.5~10mm dry solid particles |
| Auger size | large, medium and small |
| Max. rotating speed | 1100r/min |
| Spreading width | 4~10m |
| Maximum pushing volume | 300kg/min |
| Operation System - Spraying System | |
| Tank volume | 70L |
| Nozzle type | Centrifugal nozzle |
| Total number of nozzles | Centrifugal nozzle 2/4 |
| Maximum spraying width | 12 meters (operating height 3.5 meters ± 0.5 meters flight speed 5m/s) |
| Atomizing particle size | Centrifugal nozzle 50μm~500μm |
| Pump type | Magnetic impeller pump |
| Number of water pumps | 2 |
| Maximum flow rate | Two centrifugal 28L/min four centrifugal 40L/min |
| Energy System - Intelligent Battery | |
| Battery Energy | 2025Wh |
| Single cell voltage | 3.75V |
| Number of cells | 18 |
| Battery Weight | 14.6kg |
| Battery installation method | Quick Plug Battery |
| Fast charging time | 25%-95% approx. 10 minutes and 25 seconds |
| Sensing System-Radar | |
| Front monocular virtual | Gimbal camera |
| Resolution | 1920*1080 |
| Effective pixels | 400W |
| Field of view | Horizontal 80°, Vertical 120 |
| Night vision | Support |
| Number of searchlights | 2 |
| Searchlight power | 75W*2 |
| Sensing System-Radar | |
| Height range | Height measurement range: 1~60m |
| Height setting range: 0.5~30m | |
| Obstacle avoidance range | Obstacle avoidance distance (horizontal): 1~50m |
| Viewing Angle Range(3db): 50°horizontal, 10°vertical | |
| Use conditions: the relative altitude of the aircraft flight is higher than 2m and the speed <=7m/s | |
| Safety distance: 2.5m (the distance between the paddle tip and the obstacle after the craft brakesand hovers stably) | |
