Supports up to 8 kg
Supports up to 8 kg
Up to 50 minutes (no payload)
Flight distance of 10–15 km with 15 km digital image transmission
Combines visible light (30× zoom) and thermal imaging (8–14 μm) for versatile missions.

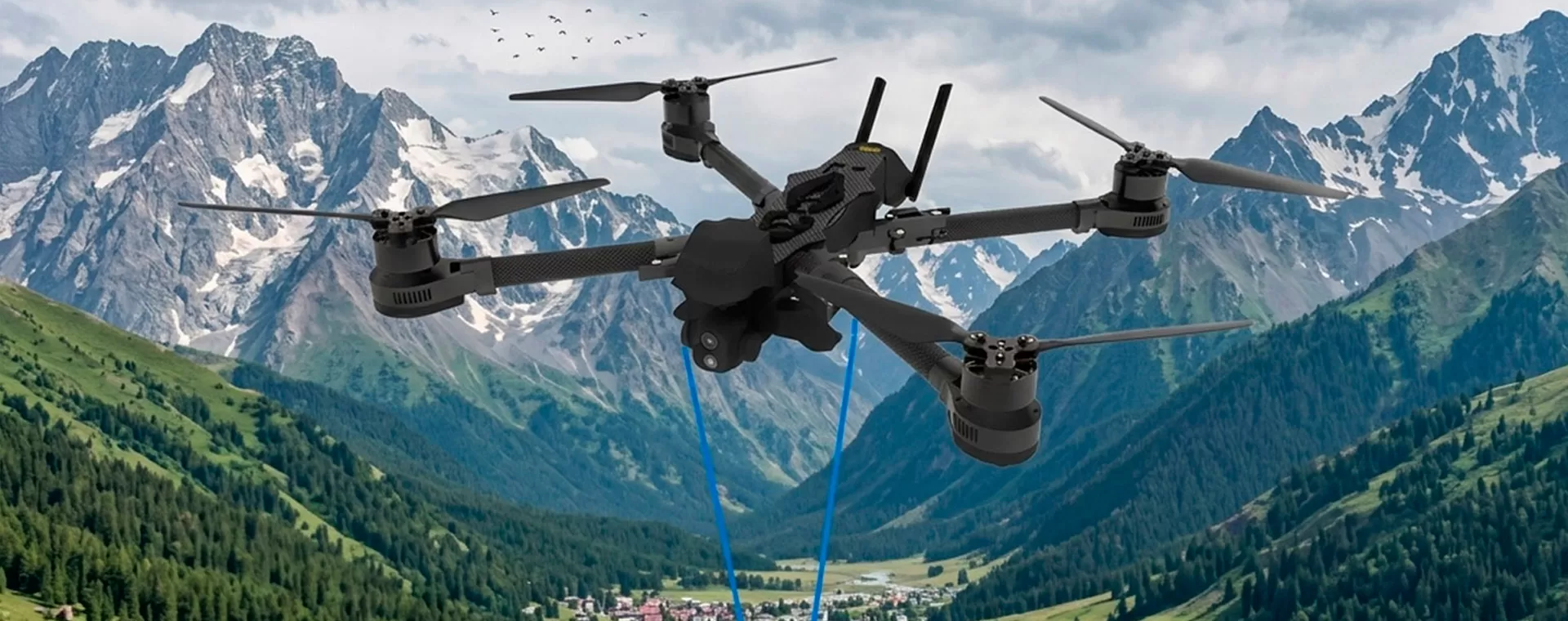

The ZAi-Z15D is built for real-world fieldwork, not just specs sheets—lifting heavy sensors, flying far, and staying stable under pressure. It blends long endurance with dual imaging intelligence, making it equally capable in inspection, emergency response, and complex industrial missions where reliability and adaptability actually matter.
Handles up to 8 kg payload, enabling multi-sensor integration, industrial delivery, and complex mission customization beyond typical commercial drones.
Delivers long flight times even under load, ensuring fewer interruptions, higher efficiency, and sustained operations in demanding field scenarios.
Combines 10–15 km flight range with 15 km transmission, supporting remote missions, wide-area coverage, and reduced need for repositioning.
High-speed capability allows quick deployment, critical for time-sensitive tasks like emergency response, inspection, and surveillance missions.
Operates in extreme temperatures, ensuring consistent performance across harsh climates such as industrial zones, cold regions, and high-heat environments.
Dual visible and thermal imaging enables advanced data collection, improving detection accuracy in surveillance, search-and-rescue, and inspection workflows.
3-axis gimbal ensures stable, high-quality data capture, essential for accurate analysis, mapping, and professional-grade visual outputs.
Large-capacity battery balances power and endurance, supporting heavy payloads without sacrificing operational efficiency or mission duration.
Foldable structure enhances transportability and rapid field deployment, ideal for mobile teams and operations in remote or constrained locations.
Modular capability and strong payload support allow adaptation to diverse applications, from logistics to inspection and public safety operations.
| Category | Parameter | Specification |
| Dimensions | Unfolded Dimension | W565×L520×H125mm |
| Folded Dimension | W220×L430×H125mm | |
| Diagonal Distance | 680mm | |
| Weight | Weight without battery | 2900g |
| Weight (with paddles & 22000mAh battery) | 5450g | |
| Max Payload | 8kg | |
| Performance | Flight Speed (GPS Mode) | 100km/h |
| Flight Speed (Altitude Hold Mode) | 120km/h | |
| Flight Distance | 10−15km | |
| Operating Temperature | −20°C∼70°C | |
| Battery & Power | Battery | 29.6V 8S 22000mAh |
| Motor | T5 | |
| Propeller | 2 blades 15 inch Foldable Paddle | |
| Battery Life | Without Payload | ≈50 min |
| With 5kg Payload | ≈20 min | |
| With 8kg Payload | ≈13 min | |
| Systems | GPS | GPS 10th generation M10 chip UBLOX |
| Image Transmitter | 15KM Digital | |
| Gimbal | 3−Axis Gimbal |
Camera Parameters
| Feature | Visible Light Lens | Thermal Imaging Lens |
| Resolution | 1280×720 (VTX) / 1280×1440 (Photo) | 384×288 |
| Lens Pixel | 500W | - |
| Aperture | F2.0 | F1.0 |
| Focal Length | f=3.5∼4.75mm | 7mm |
| Zoom | 30X | - |
| FOV | HFO/VFO/DFOV:100°/52°/122° | 24.8° |
| Spectral Range | - | 8∼14μm |
