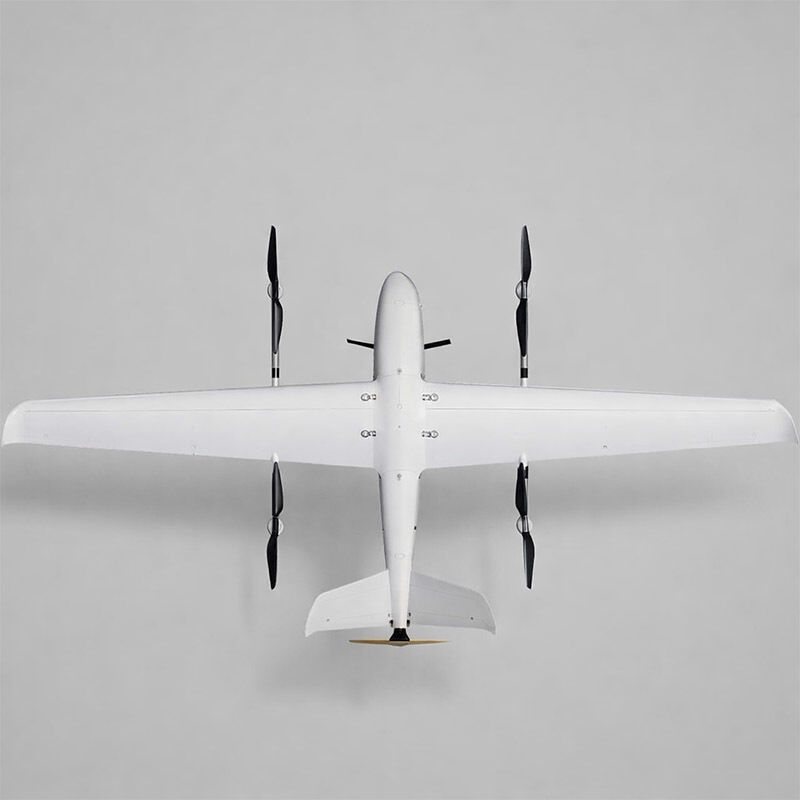

The ZAi-VT15 is an electric vertical takeoff and landing (VTOL) fixed-wing UAV designed for missions that demand both endurance and operational flexibility. By combining rotor-based lift with fixed-wing efficiency, it enables smooth vertical takeoff and landing while maintaining long-range cruise performance.
This hybrid aerodynamic configuration allows the aircraft to operate in confined or complex environments without the need for runways, while still covering large areas with high efficiency. The result is a platform that balances maneuverability and endurance, making it suitable for extended aerial tasks across varied terrains.
Engineered for consistent performance, the ZAi-VT15 integrates stable flight control, efficient propulsion, and precise navigation to support professional-grade operations with minimal complexity.
Design Advantages
- Hybrid VTOL Configuration
Combines vertical lift capability with fixed-wing cruise efficiency for versatile mission profiles
- Extended Endurance & Range
Supports long-duration flights and wide-area coverage with reduced energy consumption
- Runway-Free Operation
Takes off and lands vertically, enabling deployment in remote or space-limited environments
- Electric Power System
Delivers low-noise, low-maintenance performance suitable for continuous operations
- Responsive Flight Handling
Maintains agility and stability across different flight phases and environmental conditions
Technical Specifications
| Parameter |
Specification |
| Model |
ZAi-VT15 |
| Aircraft Type |
VTOL Fixed-Wing UAV |
| Dimensions |
3378 * 1500 * 500 mm |
| Power System |
Electric |
| Maximum Takeoff Weight |
15 kg |
| Payload Capacity |
5.0 kg |
| Cruising Speed |
70 km/h |
| Maximum Speed |
110 km/h |
| Maximum Climb Speed |
4 m/s |
| Maximum Descent Speed |
5 m/s |
| Maximum Flight Time |
Up to 210 minutes |
| Maximum Range |
245 km |
| Wind Resistance |
Level 6 |
| Maximum Operating Altitude |
4500 m |
| Operating Temperature |
10°C to 60°C |
| Transport Case Dimensions |
1350 * 600 * 450 mm |
Mission Capabilities
Large-Area Mapping & Survey
Efficiently covers extensive terrain with stable, long-duration flight, enabling accurate geospatial data collection over wide regions.
Border & Perimeter Patrol
Supports continuous aerial monitoring with extended range and endurance, reducing the need for frequent redeployment.
Infrastructure Inspection
Ideal for inspecting pipelines, highways, and remote assets where long-distance flight capability is essential.
Environmental Monitoring
Facilitates ecological surveys, forestry management, and resource monitoring with minimal environmental disturbance.
Emergency Response Support
Provides rapid aerial deployment for situational awareness and coordination during critical operations.
Payload Integration
The ZAi-VT15 supports a variety of mission-specific payloads, allowing flexible configuration:
- High-resolution mapping cameras
- Thermal imaging systems
- Multispectral sensors
- Communication relay modules
- Custom lightweight payloads
In the Package
- ZAi-VT15 Aircraft *1
- Ground Control Station *1
- Battery Set *1
- Charging System *1
- VTOL Propulsion Units *1 Set
- Fixed-Wing Components *1 Set
- Protective Transport Case *1
- Accessories Kit *1
- User Documentation *1
Operational Benefits
Flexible Deployment
Operate in confined spaces without relying on traditional runways
Long-Distance Efficiency
Covers large operational areas in a single mission
Reduced Operational Complexity
Integrated systems streamline mission planning and execution
Reliable Performance
Maintains stable flight across varying environmental conditions
Built for Modern Aerial Operations
The ZAi-VT15 offers a practical balance between endurance and flexibility, making it a dependable choice for professionals who require efficient aerial coverage without compromising on deployment versatility.
