Home > products > Industrial Drones > ZAi-X7 FPV Drone, 7 Inches Lightweight Drone, Carbon-Fiber Payload Drone

ZAi-X7 FPV Drone, 7 Inches Lightweight Drone, Carbon-Fiber Payload Drone

Product Details

Brand Name: ZAi

Certification: CE ROHS FCC ...

Model Number: ZAi-X7

Payment & Shipping Terms

Minimum Order Quantity: 1-1000 PCS

Price: 425.99

Delivery Time: Samples ship in 2 business days; bulk orders require 30 working days for production

Payment Terms: T/T,Western Union

Supply Ability: Daily 500-1000 PCS

Get Best Price
Contact Now
Specifications
Highlight:

Best FPV Drone

,

Mini FPV Drone

,

Top Rated FPV Drones

Dimension:
W 268 X L 233 X H42 Mm
Battery:
6S 22.2V Li-ion Standard 5000 MAh
Lens:
1200 TVL SENSER: 1/2.7 Inch DC5V
Motor:
#2807 KV: 1305 BLDCM
FC:
F435 / F722 Parameter Adjustment With BF
ESC:
4IN1 32Bit 55A ESC
Propellor:
7040 Three-bladed 7-ich
VTX:
1.6W / 2.5W / 3W 5.8G / 1.3G (Optional)
Receiver:
ELRS 2.4G / 915M
Operating Temperature:
-20℃ - 70℃
Dimension:
W 268 X L 233 X H42 Mm
Battery:
6S 22.2V Li-ion Standard 5000 MAh
Lens:
1200 TVL SENSER: 1/2.7 Inch DC5V
Motor:
#2807 KV: 1305 BLDCM
FC:
F435 / F722 Parameter Adjustment With BF
ESC:
4IN1 32Bit 55A ESC
Propellor:
7040 Three-bladed 7-ich
VTX:
1.6W / 2.5W / 3W 5.8G / 1.3G (Optional)
Receiver:
ELRS 2.4G / 915M
Operating Temperature:
-20℃ - 70℃
Description

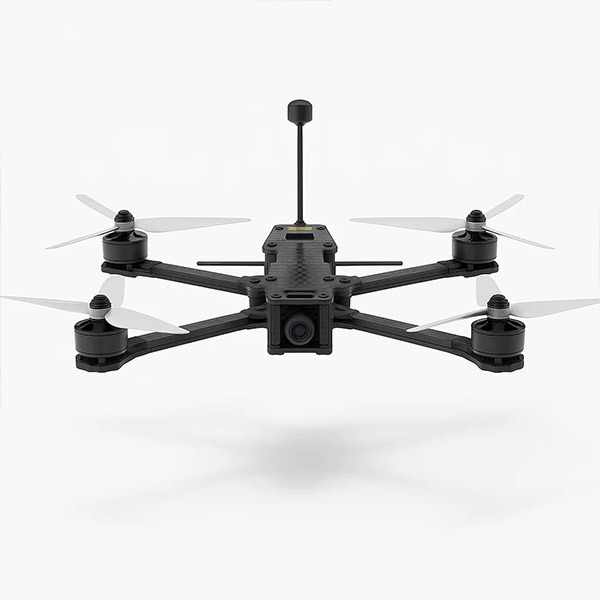

ZAi-X7 FPV Drone, 7 Inches Lightweight Drone, Carbon-Fiber Payload Drone

Push the Limits of Flight — With Precision, Power, and Speed


In high-performance FPV flight, every gram matters.
Whether you’re navigating tight courses, capturing dynamic footage, or testing payload systems, one thing is clear: standard drones can’t keep up.


They’re either too heavy to accelerate fast, too fragile for repeated stress, or too limited in range to capture truly cinematic or industrial missions.
Professionals and serious top rated FPV drones demand a pilot that is light, durable, and fast—without sacrificing control or stability.


The ZAi-X7 FPV Drone: Where Strength Meets Speed


The ZAi-X7 FPV Drone redefines what high-speed performance feels like.
Built from aerospace-grade carbon fiber and engineered for both agility and endurance, the X7 delivers the perfect balance between flight control, load capacity, and structural strength.


It’s not just an FPV drone—it’s a precision flight tool designed for speed, testing, and creativity.


Carbon-Fiber Power, Compact Strength


  • 1.5–3 kg payload capacity for sensors, cameras, or testing modules
  • 5–10 km flight distance — stable, long-range performance
  • 140 km/h top speed — experience true racing-grade acceleration
  • Carbon-fiber fuselage (2.5 mm top plate, 3 mm baseplate)
  • 5 mm reinforced arms for exceptional rigidity and crash resistance
  • Lightweight build — only 505 g without battery, 1103 g with 5000 mAh Li-ion


Every component is optimized for maximum thrust-to-weight ratio and aerodynamic efficiency.


Extended Flight, Smart Endurance


Even with its power, the the payload FPV Drone ZAi-X7 achieves impressive endurance:


  • 32 min (without payload)
  • 11 min (with 1.5 kg payload)
  • 6 min (with 3 kg payload)


This efficiency allows flexible missions—from long-distance scouting to short-burst, high-speed FPV challenges—without constant battery swaps.


Clarity You Can Control


The 1200TVL HD lens captures crisp, detailed imagery even at top speed.
An angle-controllable camera mount lets pilots dynamically adjust the viewing angle during flight—ideal for racing, inspection, or creative filming.


Combined with the X7’s agile handling, you stay in full command of every frame and every movement.


Technical Parameter


Feature Specification
Dimension W 268 x L 233 x H42 mm
Fuselage Material Carbon Fiber
Top Plate 2.5 mm Carbon Fiber
Base Plate 3.0 mm Carbon Fiber
Arm 5.0 mm Reinforced Carbon Fiber
Payload Capacity 1.5–3 kg
Flight Distance 5–10 km
Top Speed 140 km/h
Weight (No Battery) 505 g
Weight (w/ 5000 mAh Li-ion) 1103 g
Battery Life 30 min max
Flight Time (No Payload) 32 min
Flight Time (1.5 kg Payload) 11 min
Flight Time (3 kg Payload) 6 min
Camera 1200TVL HD Lens
Lens Control Angle Adjustable
Battery 6S 22.2V Li-ion Standard 5000 mAh
Lens 1200 TVL SENSER: 1/2.7 inch DC5V
Motor #2807 KV: 1305 BLDCM
FC F435 / F722 Parameter Adjustment with BF
ESC 4IN1 32Bit 55A ESC
Propellor 7040 Three-bladed 7-ich
VTX 1.6W / 2.5W / 3W   5.8G / 1.3G (Optional)
Receiver ELRS 2.4G / 915M
Operating Temperature -20℃ - 70℃


ROI: Built for Pilots Who Expect More


  • Durability = lower replacement cost – carbon-fiber construction withstands demanding use.

  • Speed + control = higher productivity – complete more flights per day or capture more footage per session.

  • Long-range connectivity = fewer takeoffs and landings, reducing risk and downtime.

  • Multi-role adaptability – racing, inspection, shipping, R&D, or creative FPV filming in one platform.


Whether used for training, industrial tasks, or professional FPV racing, the ZAi-X7 quickly repays its cost through longevity and performance consistency.


Pricing & Availability


Please contact our sales team for precise pricing, regional availability, and financing options.
We also provide volume purchase discounts and custom configuration services for professional buyers.


Experience Flight Without Limits


The ZAi-X7 FPV Drone isn’t just another quadcopter—it’s a high-performance platform for those who push boundaries.
Strong, fast, and intelligently engineered, it’s built to keep up with your skill and ambition.


Industrial Grade Drone proudly supplies the ZAi-X7 FPV Drone worldwide, with expert support and tailored solutions for every client.


Website: www.industrial-gradedrone.com
Email: elaine@industrial-gradedrone.com


Fly farther. Fly faster. Fly smarter—with the ZAi-X7 FPV Drone.
