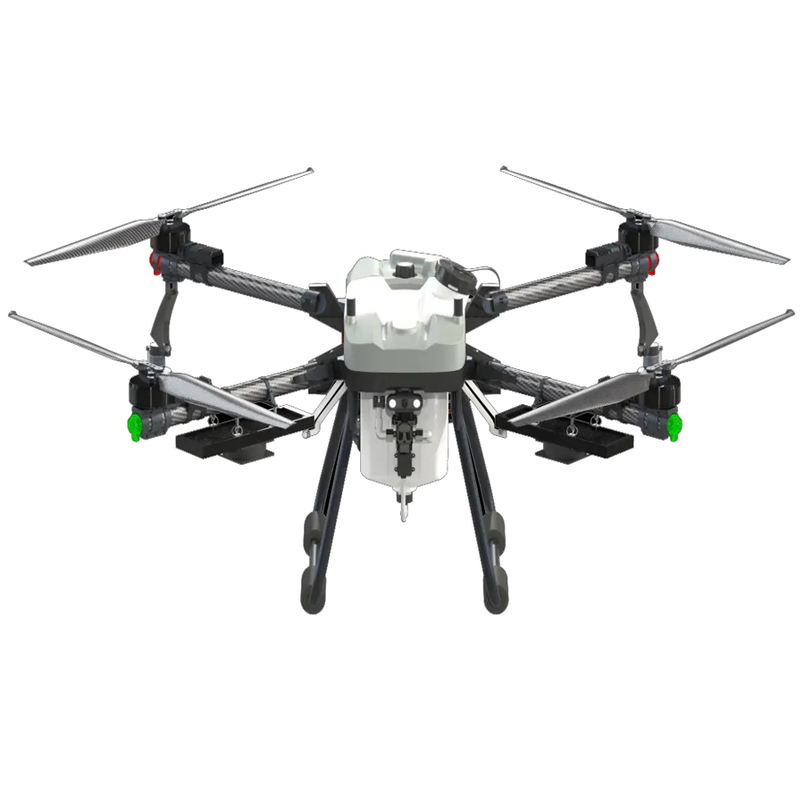

Hybrid Agriculture UAV 22L Payload 6m Spray Width
Hybrid Agriculture UAV 22L Payload 6m Spray Width
Hybrid Agriculture UAV 22L Payload 6m Spray Width
Hybrid Agriculture UAV 22L Payload 6m Spray Width

Hybrid Agriculture UAV 22L Payload 6m Spray Width

Product Details

Place of Origin: China mainland

Brand Name: ZAi

Certification: CE ROHS FCC ...

Model Number: ZAi-PC1W

Payment & Shipping Terms

Minimum Order Quantity: 1-1000pcs

Price: 28-80000

Packaging Details: standard packing/ customized packing

Delivery Time: 2(sample)~30 working days(order)

Payment Terms: T/T,Paypal/USDT...

Supply Ability: 500~1000pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

Maximum 22L liquid tank drone

,

Multi Purpose Agriculture UAV

,

Convenient transportation of agricultural drones

Rated Load Capacity:
22L Or 60KG
Spray Rate:
6.5 Liters Per Minute
Takeoff Weight:
64 Kilograms
Flight Speed:
9 Meters Per Second
Engine Continuous Power:
6.5 KW
Folding Size:
760*720*850 Mm
Spray Width:
6-12 Meters
Protection Level:
IP55
Maximum Current:
120A
Working Temperature:
0℃~55℃
Application:
1.Pesticide Spraying, Fertilization, And Sowing For Fields And Fruit Trees; 2.Prevention And Control Of Pests And Diseases In Forest Areas; 3.Feed Feeding, Breeding Fly Prevention (disease And Pest Control); 4.Agricultural Product Transportation, Rural Log
Display Size:
5.5 Inches
Rated Load Capacity:
22L Or 60KG
Spray Rate:
6.5 Liters Per Minute
Takeoff Weight:
64 Kilograms
Flight Speed:
9 Meters Per Second
Engine Continuous Power:
6.5 KW
Folding Size:
760*720*850 Mm
Spray Width:
6-12 Meters
Protection Level:
IP55
Maximum Current:
120A
Working Temperature:
0℃~55℃
Application:
1.Pesticide Spraying, Fertilization, And Sowing For Fields And Fruit Trees; 2.Prevention And Control Of Pests And Diseases In Forest Areas; 3.Feed Feeding, Breeding Fly Prevention (disease And Pest Control); 4.Agricultural Product Transportation, Rural Log
Display Size:
5.5 Inches
Description
Hybrid Agriculture UAV 22L Payload 6m Spray Width
Hybrid Multi Purpose Agriculture UAV with 22L Payload and 6m Spray Width
Key Specifications
Attribute Value
Rated load capacity 22L or 60KG
Spray rate 6.5 liters per minute
Takeoff weight 64 kilograms
Flight speed 9 meters per second
Engine Continuous Power 6.5 kW
Folding size 760*720*850 mm
Spray width 6-12 meters
Protection level IP55
Maximum current 120A
Working temperature 0℃~55℃
Display Size 5.5 inches
Product Overview

The ZAi-PC1W agricultural UAV is a multifunctional flight platform designed for modern agricultural needs, featuring:

  • X4 structural form with cross-folding frame for durability and transport efficiency
  • Integrated spraying, spreading, transportation, and aerial surveying capabilities
  • Upgraded intelligent operation system for precise and efficient operations
  • Obstacle avoidance and terrain-following flight functions for diverse scenarios
  • Multiple safety strategies with high protection levels for stable operation
  • Mobile integrated take-off and landing platform suitable for various farm sizes
Ideal Users

Agricultural professionals with large farms or orchards, agricultural technology enthusiasts, service providers, and large-scale farmers who value performance, efficiency and safety in plant protection technologies.

Technical Specifications
Drone Parameters Spraying System
Model Number: ZAi-PC1W Nozzle type: high-pressure sector nozzle
Architecture layout: four-axis Homework box capacity: 20 L
Max wheelbase: 1950mm Spray width: 6m
Pesticide container capacity: 22L Smart Charger nominal power: 2200W/90A
Idle hover time: 30 min Charging technology: Balanced charging mode
Drone weight: 40.5 kg Battery type: Lithium battery
Performance Parameters
  • Maximum flight speed: 9 m/s
  • Flight altitude: ≤1000 m (load decreases above 1000 m)
  • Maximum flight radius: 2KM
  • No-load flight time: 30 min
  • Hovering accuracy: With RTK: ±10 cm; Without RTK: ±100 cm horizontal, ±50 cm vertical
  • Obstacle avoidance perception range: 1.5 - 27 m
  • Wind resistance: 6m/s
  • Working temperature: 0℃~50℃
  • Maximum take-off weight: 64 kg
Standard Package Includes

ZAi-PC1W drone ×1, H12 remote control ×1, battery ×1 (8365188HP), UP-S14 charger ×1

Applications
Agriculture

Users: Farmers
Uses: Pesticide spraying, fertilization, and sowing for field crops and fruit trees
Benefits: Wide operation range, high speed, good precision, low labor intensity
Example: Can spray 1,000 mu of wheat fields in half a day compared to 200 man-days manually

Forestry

Users: Forestry department staff
Uses: Pest control in forest areas
Benefits: Operates in complex areas with high safety and efficiency
Example: Controls pests in 5,000 mu of forest in about two days

Fishery

Users: Aquaculture farmers
Uses: Feed distribution and pest control
Benefits: Even water area coverage, easy operation
Example: Completes feed distribution for 200-mu fishpond in minutes

Logistics

Users: Agricultural product growers
Uses: Transportation of agricultural products
Benefits: Fast speed, not restricted by road conditions
Example: Reduces 5km mountain transport from 1-2 hours to 10-15 minutes

Hybrid Agriculture UAV 22L Payload 6m Spray Width 0 Hybrid Agriculture UAV 22L Payload 6m Spray Width 1
