Highlight:
Crop Spraying Drone
, Agricultural Drones
, Heavy Payload Drone
Layout: |
4-axis |
Dimensions: |
3305mm X 3577mm X 850mm (boom Deployed, Blades Deployed)，1270mm X 880mm X 880mm (boom Folded) |
Maximum Wheelbase: |
2628mm |
Maximum Take-off Weight: |
Spraying 140kg / Spreading 150kg |
Empty Mass (including Battery): |
68kg |
Tank Capacity: |
70L |
Seed Tank Capacity: |
100L (max. 80kg) |
RTK Positioning: |
Horizontal ±10 Cm, Vertical ±10 Cm |
Hovering Time With No Load: |
>15 Min |
Hovering Time With Full Load: |
>5 Min |

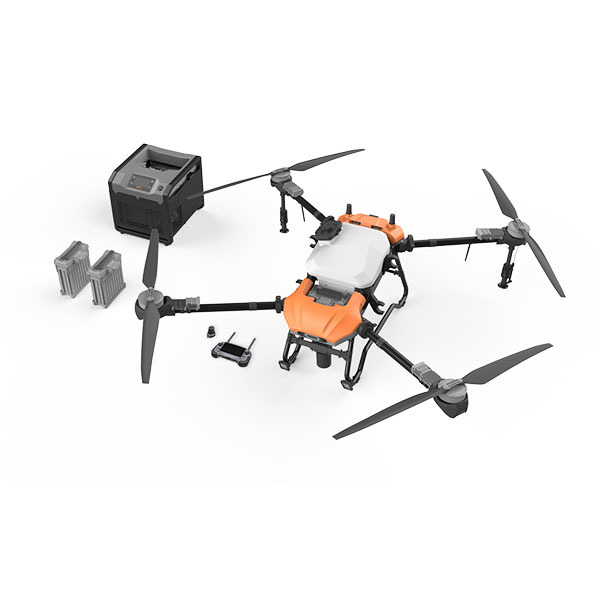

ZAi 80kg Heavy Duty Sprayer Drone for Autonomous Spraying, Sowing, and Lifting
| Standard package contents |
Flight * 1 |
|
Spray tank * 1
|
|
Spot marker * 1
|
|
Drone remote controller * 1
|
|
Intelligent flight battery * 3
|
|
Flight battery charger * 1
|
Technical Parameters
| Model |
ZAi-580 |
|
|
|
|
|
|
Dimensions
|
3305mm x 3577mm x 850mm (boom deployed, blades deployed),1270mm x 880mm x 880mm (boom folded)
|
|
Maximum wheelbase
|
2628mm
|
|
Maximum take-off weight
|
Spraying 140kg / Spreading 150kg
|
|
Empty mass (including battery)
|
68kg
|
|
Tank capacity
|
70L
|
|
Seed tank capacity
|
100L (max. 80kg)
|
|
RTK Positioning
|
Horizontal ±10 cm, Vertical ±10 cm
|
|
Hovering time with no load
|
>15 min
|
|
Hovering time with full load
|
>5 min
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Number of propeller Blade
|
|
|
|
|
Energy System-Smart Charger
|
|
|
9000W (generator direct connection) / 2000W (utility direct connection)
|
|
|
|
Operating System - Spreading System
|
|
|
|
|
|
|
|
|
|
Support particle diameter
|
0.5~10mm dry solid particles
|
|
|
|
|
|
|
|
|
|
|
|
|
Operation System - Spraying System
|
|
|
|
|
|
|
|
|
|
|
|
12 meters (operating height 3.5 meters ± 0.5 meters flight speed 5m/s)
|
|
|
Centrifugal nozzle 50μm~500μm
|
|
|
|
|
|
2
|
|
|
Two centrifugal 28L/min four centrifugal 40L/min
|
Energy System - Intelligent Battery
|
|
|
|
|
|
|
|
|
|
|
|
|
Battery installation method
|
|
|
|
25%-95% approx. 10 minutes and 25 seconds
|
|
Sensing System-Radar
|
|
|
|
|
|
|
|
|
|
|
|
Horizontal 80°, Vertical 120
|
|
|
|
|
|
|
|
|
|
|
Sensing System-Radar
|
|
|
Height measurement range: 1~60m
Height setting range: 0.5~30m
|
|
Obstacle avoidance distance (horizontal): 1~50m
|
Viewing Angle Range(3db):50°horizontal,10°vertical
|
Use conditions: the relative altitude of the aircraft flight is higher than 2m and the speed <=7m/s
|
Safety distance: 2.5m (the distance between the paddle tip and the obstacle after the craft brakesand hovers stably)
|
Description
The ZAi-580 agricultural drone is designed as a versatile robotic aerial system for farming applications. This heavy-duty drone combines functions for spraying, sowing, and lifting, aiming to streamline various tasks on farms. It's built with a robust propulsion and energy system, capable of delivering over 300 kg of thrust and handling significant loads, including a maximum takeoff weight of 150 kg.
For activities like crop spraying, the drone features a 70-liter spraying tank and can achieve a maximum flow rate of 40 liters per minute with an optional four-centrifugal nozzle upgrade package, producing droplet sizes between 50-500 micrometers. Its sowing system includes an 80 kg spreading tank with a flow rate of 300 kg/min, accommodating particle sizes from 0.5 to 10 millimeters, suitable for materials like urea, compound fertilizers, or various types of rice. The drone also supports lifting/carrying with an 80 kg capacity.
Equipped for fully autonomous operations, the ZAi-580 adapts to different farming environments, whether large fields or orchards. It incorporates RTK Mobile Station and RTK Mapping Device for precise navigation and mapping. The drone's power system includes 62-inch carbon fiber propellers and high-performance flat wire motors, with each motor set offering a maximum thrust of 76 kg. An 18S 30,000mAh intelligent battery provides long-lasting performance, supported by an active and passive cooling system to maintain optimal temperatures.
The ZAi-580 also features an Airpilot 3.5 multifunctional remote controller with a 6-inch high-resolution display, 4G module for enhanced video transmission up to 2000 meters point-to-point, and customizable buttons. Its perception system includes a 120° ultra-wide-angle lens with virtual gimbal and electronic stabilization, along with night vision enhancement for improved clarity during nighttime operations. For safety, it boasts a 360-degree radar sensing system with a 70m effective sensing range for obstacle avoidance. The software system provides autonomous operation with features like intelligent navigation, one-click edge scanning, and plot generation.
Features
- Heavy Payload Drone: supports up to 150 kg takeoff weight with 62-inch carbon fiber propellers and high-power propulsion.
- Crop Spraying Drone: equipped with a 70L spraying tank, 40 L/min flow rate, anti-drip electromagnetic valve, and adjustable droplet sizes (50–500 μm).
- Agricultural Spreading System: 80 kg spreading tank with 300 kg/min flow rate, suitable for fertilizers and grains from 0.5–10 mm.
- Strong Carrying Capacity: can lift and transport loads of up to 80 kg when needed.
- Reliable Power: powered by an 18S 30,000mAh intelligent battery with active/passive cooling for extended operation.
- Advanced Control: Airpilot 3.5 remote with 6-inch display and 4G transmission up to 2000 m.
- Safety & Precision: 360° radar sensing with 70 m range, obstacle avoidance, and Avionics 5.0 IP67-rated flight control system.
- Enhanced Vision: ultra-wide-angle lens, virtual gimbal, electronic stabilization, and night vision for low-light work.
Applications
The ZAi-580 agricultural drone is designed for a range of practical applications in farming and other relevant fields, serving as a versatile UAV drone for enhancing efficiency. This heavy-duty drone can be utilized for:
- Seed Sowing: It's equipped for precise seed sowing, distributing seeds evenly across agricultural fields.
- Crop Spraying (e.g., Wheat Spraying): Its primary use includes precise crop spraying, such as applying treatments to wheat fields, where it can distribute liquids to large areas.
- Weeding and Land Reclamation: The drone can also be employed for tasks related to weeding and initial land preparation or reclamation, likely through targeted spraying of herbicides.
- Drought Sprinkling: In conditions of drought, the drone can perform sprinkling operations to deliver water to crops.
- River Management: The drone's capabilities extend to applications like river management, which could involve monitoring, spraying for aquatic plant control, or potentially even targeted spreading in certain scenarios related to water bodies.
- Pest Control: It is used for comprehensive pest control, efficiently applying pesticides over affected areas.
- Lifting and Carrying: Beyond spraying and sowing, it offers a lifting and carrying capacity, useful for transporting certain loads within a farm or other operational sites.
These agricultural drones are capable of fully autonomous operations, adapting to diverse environments and conditions to help users with tasks like pest control, nutrient application, and various aspects of land and water management.
