Home > products > Industrial Drones > ZAi FPV Drone 13 Inch High Precision Flight 35 Minutes Long Endurance Drone

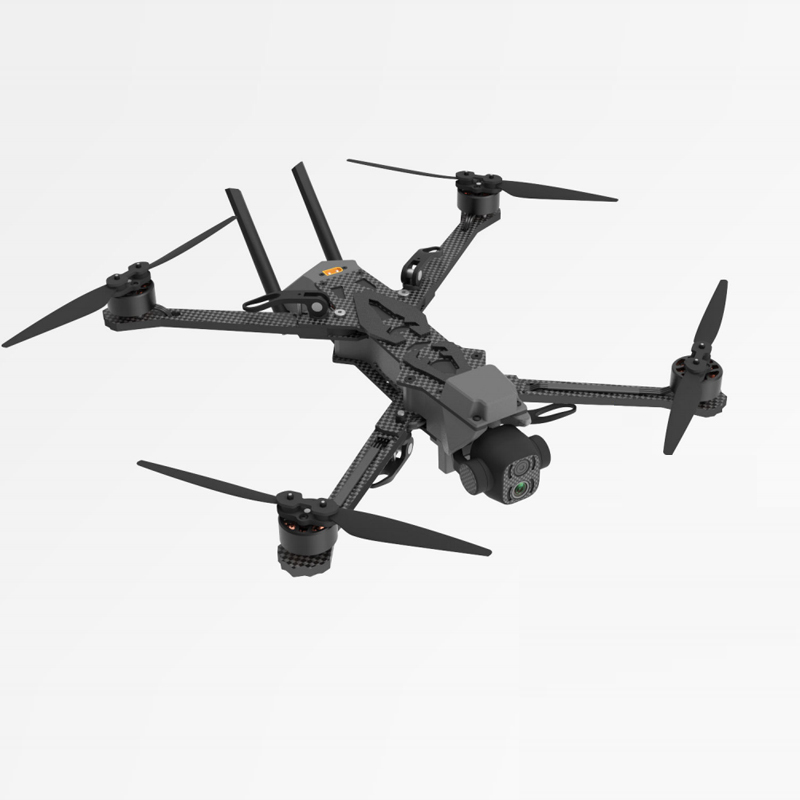

ZAi FPV Drone 13 Inch High Precision Flight 35 Minutes Long Endurance Drone

Product Details

Place of Origin: China mainland

Brand Name: ZAi

Certification: CE ROHS FCC ...

Model Number: ZAi-13D

Payment & Shipping Terms

Minimum Order Quantity: 1-1000pcs

Price: 28-80000

Packaging Details: standard packing/ customized packing

Delivery Time: 2(sample)~30 working days(order)

Payment Terms: T/T,Paypal/USDT...

Supply Ability: 500~1000pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

Best FPV Drone

,

Long Endurance Drone

,

Drones with Camera for Adults 4K FPV

Type:
FPV Racing Drpne
Hovering Time:
35 Mins
Customization:
Support
Flight Speed:
140km/h
Payload:
8kg
Deployed Size:
442×411×114mm (W×L×H)
Folded Size:
170×335×114mm (W×L×H)
Operating Temp:
-20℃ To 70℃
GPS:
One-click Return
Flight Distance:
5-10km
Type:
FPV Racing Drpne
Hovering Time:
35 Mins
Customization:
Support
Flight Speed:
140km/h
Payload:
8kg
Deployed Size:
442×411×114mm (W×L×H)
Folded Size:
170×335×114mm (W×L×H)
Operating Temp:
-20℃ To 70℃
GPS:
One-click Return
Flight Distance:
5-10km
Description
ZAi FPV Drone 13 Inch High Precision Flight 35 Minutes Long Endurance Drone

Product Description


The drone's fuselage is made of high-strength carbon fiber material and its panels utilize 3mm thick carbon fiber, while the arms of the FPV drone employs 7mm thick carbon fiber. This design lowers the weight while enhancing the fuselage's stability. Enjoy extended 35-minute flight endurance and enhanced safety through centimeter-level M10 GPS precision and one-tap return-to-home functionality.


Engineered for high-speed agility, this long endurance drone achieves 140km/h with 13-inch propellers for precise task execution. Experience immersive control via 20km HD digital transmission with ultra-low latency using the G12 remote controller. The FPV drones with camera for aldults quick-press folding mechanism ensures effortless portability without compromising rigid deployment stability, while the intelligent imaging system combines a single-axis gimbal, AI recognition, and dynamic tracking for automatically locking onto moving subjects.


Technical Parameters


Parameter Specification
Deployed Size 442×411×114mm (W×L×H)
Folded Size 170×335×114mm (W×L×H)
Wheelbase 530mm
Weight 1600g (including battery)
Payload 8kg
Propellers 13-inch
Weight 3100g (without battery)
GPS One-click Return
Flight Speed 140km/h
Battery 12000mAh 22.2V 6S
Positioning GPS with 10th-gen UBLOX M10 chip
Flight Distance 5-10km
Operating Temp -20℃ to 70℃


Single-axis head parameters


Parameter Specification
Lens Pixel 500w
Video Transmission Resolution 1280 × 720
Lens Focal Length F = 3.5~4.75mm
Photo/Video Resolution 2560 × 1440
Aperture F2.0
Zoom Magnification 30x (Optical)
HFO/VFO/DFOV 100° / 52° / 122°
Supported Memory Card MicroSD (max 256GB) FAT32


Product Advantages


  • Lightweight Rigidity: The FPV drone fuselage utilizes high-strength carbon fiber material. The UAV drone's fuselage panels are constructed with 3mm thick carbon fiber, while the arms employ 7mm thick carbon fiber. This achieves weight reduction while enhancing structural rigidity, enabling the drone to adapt to diverse working environments.
  • High Payload: The FPV drone boasts powerful motors, significantly enhancing its load capacity to achieve an 8KG payload. With accessories, it enables more diverse mounting options and more convenient operation.
  • Foldable Design: The payload FPV drone's arms are quick-press folded for easy portability and unfold very securely.
  • High-Speed Precision: The long flight time drone boasts impressive power and a robust airframe, coupled with 13-inch propellers, enabling a maximum flight speed of 140 km/h. Equipped with a built-in M10 high-precision GPS chip for pinpoint positioning, it ensures FPV drone racing is both fast and accurate.
  • HD Zoom Imaging: The heavy payload FPV drone ZAi-13D features a single-axis HD visible light gimbal, providing a clear aerial perspective. Equipped with a 2K HD distortion-free visible light camera, the drone supports both 2K photo and video capture. The system further offers 30x digital zoom, bringing distant scenes into remarkably clear view.
  • Autonomous Flight: ZAi-13D, when used in conjunction with a ground station, enables route planning. It can autonomously fly to the designated destination and return automatically. This route planning functionality is clear, intuitive, practical, and reliable, assisting users in completing various complex flight missions.
  • Long Range FPV Drone: Using the G12 remote controller, it can achieve control up to 20km away and deliver real-time HD digital image transmission, building a high-definition perspective.


Product Application


Flight enthusiasts, aerial photography enthusiasts, projects, Israeli military, army, DJI dealers, distributors, RC companies, RC car companies, sports camera dealers, 3-axis handheld gimbal agents, consumer electronics companies, supermarkets, online and offline brick-and-mortar stores, etc..
