Highlight:
High Precision Rapid Flight
, 35 Minutes Long Endurance
, 20km Digital Mapping

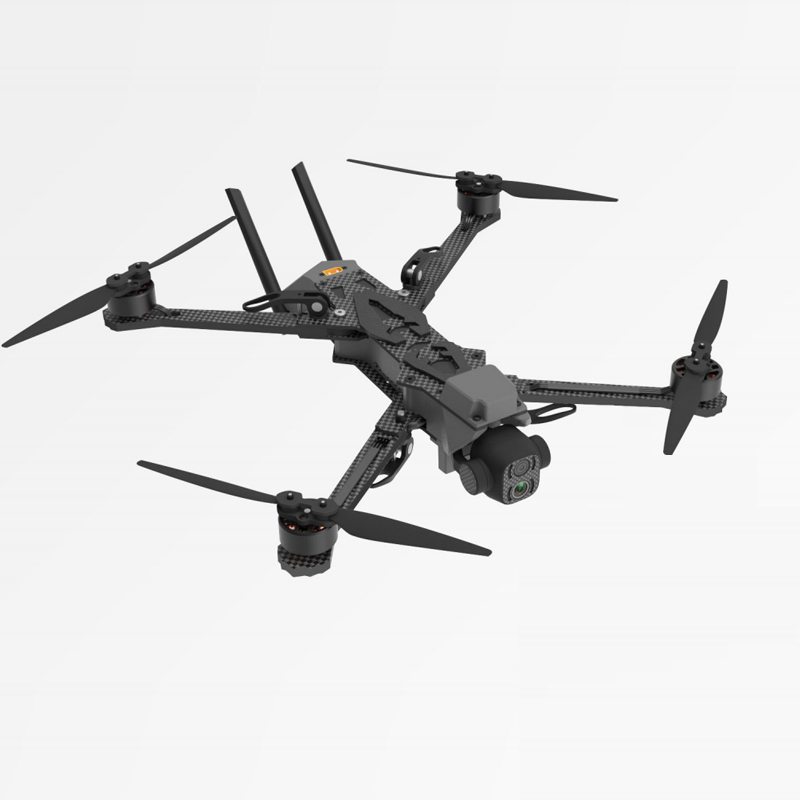

FPV Drone 13 Inch High Precision Flight 35 Minutes Long Endurance Payload 8kg
Product Advantages
1.Lightweight Rigidity-The drone fuselage utilizes high-strength carbon fiber material. The fuselage panels are constructed with 3mm thick carbon fiber, while the arms employ 7mm thick carbon fiber. This achieves weight reduction while enhancing structural rigidity, enabling the drone to adapt to diverse working environments.
2.High Payload- FPV drone boasts powerful motors, significantly enhancing its load capacity to achieve an 8KG payload. With accessories, it enables more diverse mounting options and more convenient operation.
3.Foldable Design-The drone's arms are quick-press folded for easy portability and unfold very securely.
4.High-Speed Precision-The drone boasts impressive power and a robust airframe, coupled with 13-inch propellers, enabling a maximum flight speed of 140 km/h. Equipped with a built-in M10 high-precision GPS chip for pinpoint positioning, it ensures FPV drone racing is both fast and accurate.
5.HD Zoom Imaging-The FPV drone Z13D features a single-axis HD visible light gimbal, providing a clear aerial perspective. Equipped with a 2K HD distortion-free visible light camera, it supports both 2K photo and video capture. The system further offers 30x digital zoom, bringing distant scenes into remarkably clear view.
6.Autonomous Flight-Z13D, when used in conjunction with a ground station, enables route planning. It can autonomously fly to the designated destination and return automatically. This route planning functionality is clear, intuitive, practical, and reliable, assisting users in completing various complex flight missions.
7.Long-Range FPV-Using the G12 remote controller, it can achieve control up to 20km away and deliver real-time HD digital image transmission, building a high-definition perspective.
Technical Parameters
Z13D Parameters
| Parameter |
Specification |
| Deployed Size |
442×411×114mm (W×L×H) |
| Folded Size |
170×335×114mm (W×L×H) |
| Wheelbase |
530mm |
| Weight |
1600g (including battery) |
| Payload |
8kg |
| Propellers |
13-inch |
| Weight |
3100g (without battery) |
| GPS |
One-click Return |
| Flight Speed |
140km/h |
| Battery |
12000mAh 22.2V 6S |
| Positioning |
GPS with 10th-gen UBLOX M10 chip |
| Flight Distance |
5-10km |
| Operating Temp |
-20℃ to 70℃ |
Single-axis head parameters
| Parameter |
Specification |
| Lens Pixel |
500w |
| Video Transmission Resolution |
1280 × 720 |
| Lens Focal Length |
F = 3.5~4.75mm |
| Photo/Video Resolution |
2560 × 1440 |
| Aperture |
F2.0 |
| Zoom Magnification |
30x (Optical) |
| HFO/VFO/DFOV |
100° / 52° / 122° |
| Supported Memory Card |
MicroSD (max 256GB) FAT32 |
Product Description
The drone's fuselage is made of high-strength carbon fiber material. The fuselage panels utilize 3mm thick carbon fiber, while the arms employ 7mm thick carbon fiber. This design lowers the weight while enhancing the fuselage's stability. Enjoy extended 35-minute flight endurance and enhanced safety through centimeter-level M10 GPS precision and one-tap return-to-home functionality.
Engineered for high-speed agility, it achieves 140km/h with 13-inch propellers for precise task execution. Experience immersive control via 20km HD digital transmission with ultra-low latency using the G12 remote controller. Its quick-press folding mechanism ensures effortless portability without compromising rigid deployment stability, while the intelligent imaging system combines a single-axis gimbal, AI recognition, and dynamic tracking for automatically locking onto moving subjects.
Product Application
Flight enthusiasts, aerial photography enthusiasts, projects, Israeli military, army, DJI dealers, distributors, RC companies, RC car companies, sports camera dealers, 3-axis handheld gimbal agents, consumer electronics companies, supermarkets, online and offline brick-and-mortar stores, etc.
