Home > products > Other Drones > ZAi T2 Drone With Night Vision And Thermal Camera 10km Long Range Drone

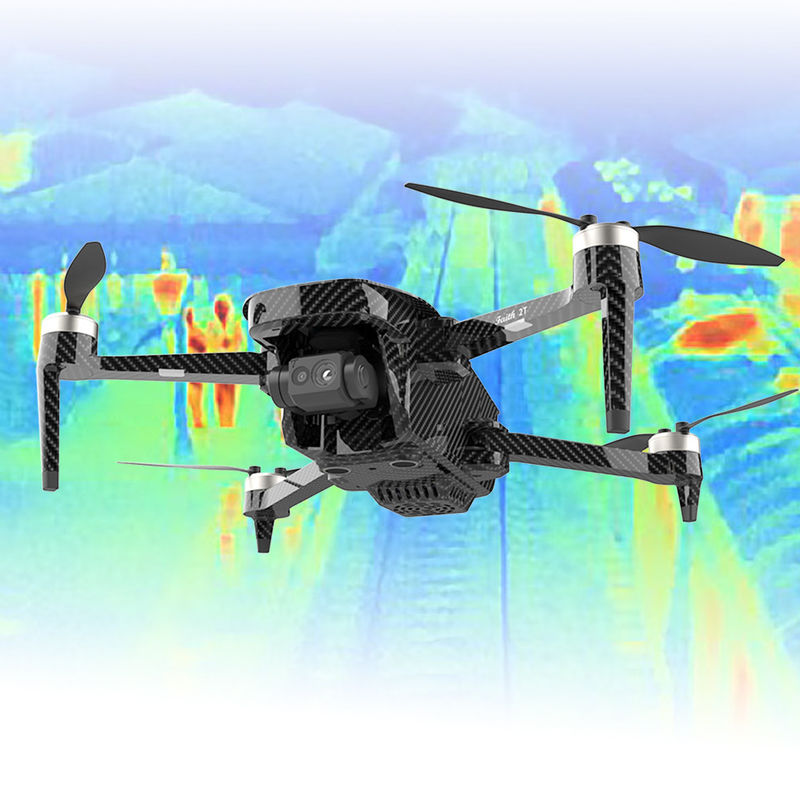

ZAi T2 Drone With Night Vision And Thermal Camera 10km Long Range Drone

Product Details

Place of Origin: China mainland

Brand Name: ZAi

Certification: CE ROHS FCC ...

Model Number: ZAi-Faith 2T

Payment & Shipping Terms

Minimum Order Quantity: 1-1000pcs

Price: 8$-100000USD

Packaging Details: standard packing/ customized packing

Delivery Time: 2(sample)~30 working days(order)

Payment Terms: T/T,Paypal/USDT...

Supply Ability: 500~1000pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

Long Range Drones

,

Drone With Night Vision

,

10 km Range Drone Price

Name:
Search Rescue Drone With 3 Axis Gimbal Camera
Flight Control:
Compatible With Mavlink Protocol Flight Control
Battery:
3000mAh
Flight Time:
40mins(no Load) ,29mins(full Load)
Wheelbase:
Foldable
Maximum Ascend Speed:
4m/s
Satellite Positioning Systems:
GPS/GLONASS
Gimbal:
3-axis
Maximum Decsend Speed:
3m/s
Name:
Search Rescue Drone With 3 Axis Gimbal Camera
Flight Control:
Compatible With Mavlink Protocol Flight Control
Battery:
3000mAh
Flight Time:
40mins(no Load) ,29mins(full Load)
Wheelbase:
Foldable
Maximum Ascend Speed:
4m/s
Satellite Positioning Systems:
GPS/GLONASS
Gimbal:
3-axis
Maximum Decsend Speed:
3m/s
Description
ZAi T2 Drone With Night Vision And Thermal Camera 10km Long Range Drone

Product Description


This infrared thermal imaging drone has a 10km flight distance, and a 30-minute range, can capture clean photos and night scene videos, has excellent noise suppressor ability, and it is perfect for electric power inspection, and the thermal drone is an advanced robotic drone designed for search and rescue purposes. It features an LCD screen and a foldable wheel that ase can sing in the air for up to 40 minutes with no load or 29 minutes with a full load. The flight control system is compatible with the Mavlink Protocol, and the drone with night vision is also equipped with both GPS and GLONASS satellite positioning systems for precise tracking. With its advanced features and capabilities, this search and rescue drone is an essential addition to any rescue team.


Technical  Parameters


Parameters Value
Aircraft
Product Name ZAi 1080P 10km Search Rescue Drone
Model No. ZAi-Faith 2T
Size
Unfold:191 X 262 X 107 mm (L*W*H)
Fold: 179X 108 X 74 mm(L*W*H)
Wheelbase
280 mm
Weight (Battery & Propellers Included)
562g
Max Ascent Speed
4m/s(sport mode)       3m/s(Normal mode)
Max Descent Speed
3m/s(sport mode)      2m/s(Normal mode)
Max Service Ceiling Above Sea Level
4000 m
Max Flight Time
32 mins
Operating Temperature Range
﹣5°C~45°C
Satellite Positioning Systems
GPS/GLONASS
Hover Accuracy Range
vertical: +/- 0.5 m   ± 0.2 m(ultrasonic system,optical flow system works)
horizontal: +/- 1.5m  ± 0.3 m(ultrasonic system,optical flow system works)
Operating Frequency
2.4G
Maximum flight height
120m
Optical flow system

Operating Environment
Surface with clear pattern and adequate lighting (lux > 15)
Velocity Range
≤1.5 m/s at 6.6 ft (2 m) above ground
Altitude Range
0.5~5m
Ultrasonic altitude system

Operating Environment
except for the surface of water or ground of absorbing material (such
as thick carpet)
Velocity Range
≤ 3m/s
Altitude Range
0.2-4.5m
3-axis gimbal

stabilization
3-axis(pitch:+30/-120°,roll:± 30°,course:±30°)
controllable range
pitch:-90°~20°
Jitter Amount
0.01°
Normal camera

sensor
SONY CMOS
image size
3840*2160(8mp)
video recording resolution
2716×1524(2.7k)25FPS
supported file system
FAT32(<=32GB) /exFAT(>32GB)
video MP4
operating temperature range
0°C~40°C
Thermal imaging infrared camera

sensor
Vanadium oxide uncooled infrared focal plane detector
zoom 4.3mm
sensor resolution
256×192 @25Hz
Infrared temperature measurement accuracy
±2℃ or ±2%
measuring range
Industrial temperature measurement: -15 ℃~150 ℃ (high image
quality) 50 ℃~550 ℃ (wide range)
Digital zoom
8X
Effective measurement distance (person)
about 150m
Pixel spacing
12 μm
Wavelength range
8-14μm
photo format
R-JPEG
video format MP4
Temperature measurement method
Point temperature measurement, Regional temperature
measurement
focusing mode
Non-thermal prime lens
support for file system
FAT32
Support for storage card types
MicroSD card, with a maximum support of 128GB and a
the transmission speed of UHS-I Speed Grade 3 rated Micro SD card.
APP

Mobile App
C-Fly Go
Maximum FPV transmission distance
10km
Resolution
1080p
compatible operating system
Andriod 6.0 above, IOS 10.0above
Remote Controller

Operating Frequency
2.4GHZ
Screen type
LCD
Screen size
5.5 inch
Resolution
1080p
maximum transmission distance
10km
EIRP
<26 dBm(FCC),<20 dBm(CE/SRRC/MIC)
working time about 4 hours
operating temperature range
﹣5°C~45°C
charger type
USB-C


Product Advantages


  • small body size powerful performance: high-quality carbon fiber body texture
  • infrared thermal imaging technology: it can observe day and night
  • visible light camera, dual camera channel
  • digital image transmission distance of up to 10 kilograms
  • optical flow positioning hovering
  • 3-AXiS Micro Gimbal
  • duration time 30 minutes
  • Thermal imaging drone
  • Long-range search and rescue UAV
  • Foldable industrial drone
  • MAVLink-compatible flight control
  • GPS/GLONASS dual positioning‌
  • Quantified specs (10km/40min) build trust‌47
  • Scenario-driven keywords (power inspection, SAR) target niche audiences‌13
  • Technical terms (brushless motor, IP54) align with professional buyer searches‌48
  • Modularity and protocol compatibility emphasize ecosystem integration‌

Product Application


This infrared thermal imaging drone with night vision is built for demanding missions, offering a 10 km flight distance and up to 30 minutes of flight time on a single charge. Equipped with advanced sensors, it captures clear thermal images and crisp night-scene videos, even in challenging low-light conditions. Its enhanced noise-suppression technology ensures stable performance and reliable data collection. Ideal for power line inspections, search and rescue operations, security monitoring, and other professional applications, this drone delivers precision and confidence when visibility matters most.
